Product Description

Acudor – CD5080HP1616X

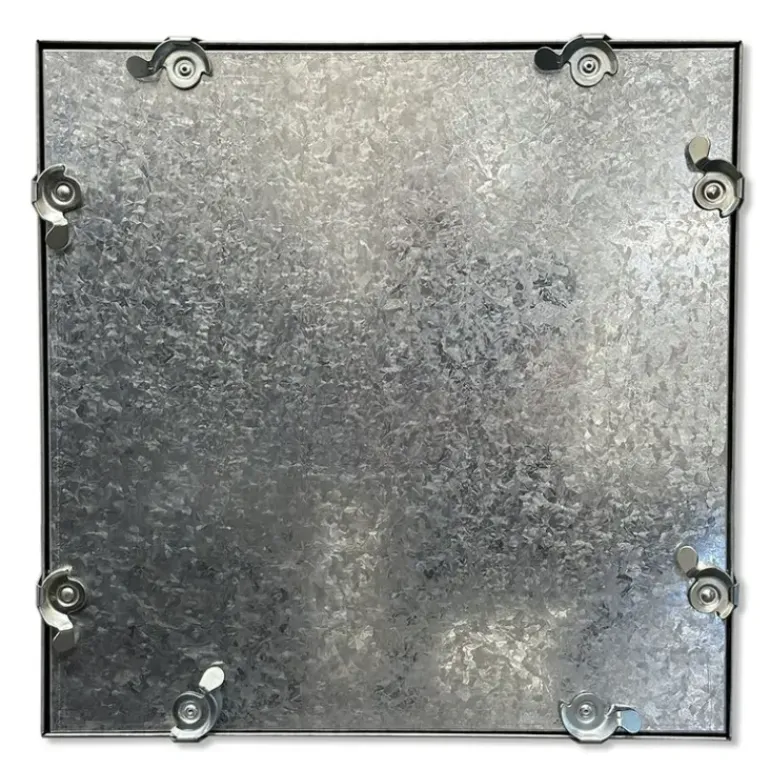

16″ x 16″ High Pressure Duct Panel – Acudor

Your ductwork handles varying pressure levels that are essential for many building functions. Ensuring the optimal condition of the system’s many components is vital to keeping things operational. For this reason, you’ll need a robust duct access door like the 16″ x 16″ CD-5080-HP so your personnel can service these areas efficiently.

Benefits of Installing 16″ x 16″ CD-5080-HP:

• Designed for handling high levels of pressure
• Made from robust materials
• Provides convenient access to vital duct work components

The material used for 16″ x 16″ CD-5080-HP’s construction is 24-gauge galvanized steel. The door has a double panel with high-temperature glue, while the mounting frame comes with 5/8″ notched knock-over tabs on the inside to provide easy installation.

It has a closed cell neoprene gasketing with dimensions of 1/4″ thick by 1/2″ wide between door and frame and 1/8″ thick by 1/2″ wide between frame and duct. The door panel has a 3″ fiberglass insulation with an R factor of 7.7, compressed into 1″ and a hand-operated self-tightening cam latch.

16″ x 16″ CD-5080-HP Product Specifications:

• Material: Galvanized steel, double panel
• Door: 24 gauge, double panel with high-temperature glue.
• Mounting Frame: 24 gauge with 5/8″ notched knock-over tabs.
• Gasketing: 1/4″ thick by 1/2″ wide closed cell neoprene gasketing between door and frame. 1/8″ thick by 1/2″ wide closed cell neoprene gasketing between frame and duct
• Insulation: Door panel filled with 3″ fiberglass insulation (7.7 R factor), compressed into 1″.

• Latch: Self-tightening, hand-operated cam latch

Additional Information

Door Size: NA”
