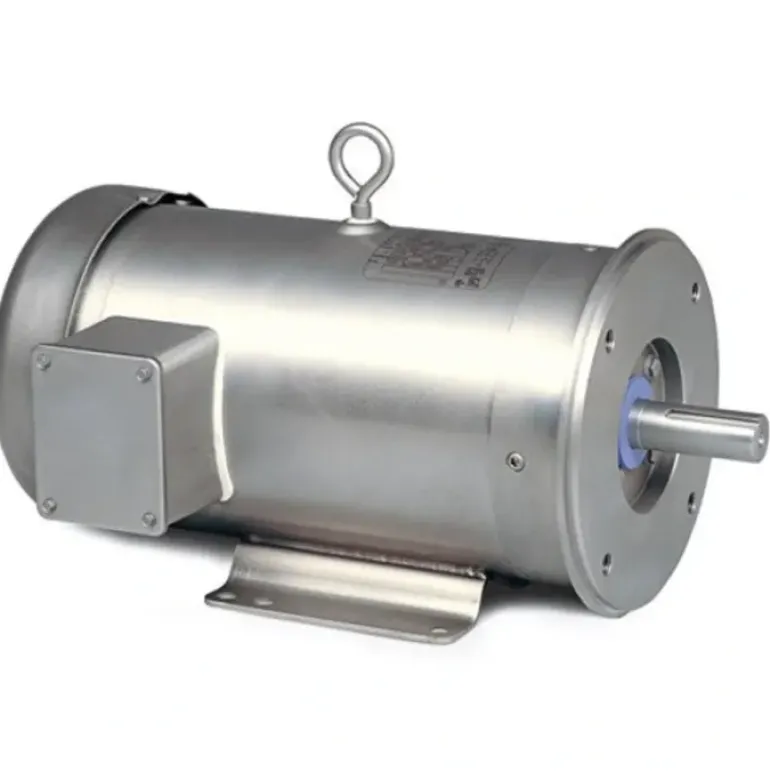

Baldor CESSWDM3555T 2Hp, 3450Rpm, 3Ph, 60Hz, 145Tc – One-stop shop for professional tools and equipment.

Description

Product Description

Baldor – CESSWDM3555T

Additional Information

ManufacturerBaldor

Nameplate Output0.75

Number of Poles4

Phase3

MultiplierWD

Shaft Diameter (In.)3.375

Speed 1785 RPM

Product Style GRINDER

Wheel Bore Size (In.)0.75

Wheel Diameter(In.)8

Wheel Face(.)1

Starting Method Direct on line

Frame 145TC

Output @ Frequency 2.000 HP @ 60 HZ

Synchronous Speed @ Frequency 3600 RPM @ 60 HZ

Voltage @ Frequency 208.0 V @ 60 HZ

Frame Material Stainless Steel

Motor Letter Type Three Phase

Catalog Number CESSWDM3555T

Enclosure TEFC

XP Division Not Applicable

Agency Approvals UR

Armature Voltage 180 V

Base Speed 1750 RPM

Field Voltage 100 V

Output Power 1.500 HP

Ambient Temperature 40 °C

Armature Current 144.0 a

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Drip Cover No Drip Cover

Duty Rating CONT

Feedback Device NO FEEDBACK

Field Winding Type COMPOUND

Frame Prefix DC

Heater Indicator No Heater

Insulation Class F

Lifting Lugs Standard Lifting Lugs

Mounting Arrangement F1

Overall Length 44.96 IN

Service Factor 1.15

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Slinger Indicator Shaft Slinger

Motor Standards NEMA

Auxillary Box No Auxillary Box

Constant Torque Speed Range 10-60

Current @ Voltage 144.000 A @ 460.0 V

Design Code B

Efficiency @ 100% Load 95.4 %

Enclosure Modification Severe Duty Features

High Voltage Full Load Amps 144.0 a

Inverter Code Inverter Ready

KVA Code G

Motor Lead Quantity/Wire Size 3 @ 1/0 AWG

Motor Type A44076M

Power Factor 85

Product Family General Industrial

Pulley End Bearing Type Ball

Pulley Face Code C-Face

Shaft Rotation Reversible

Speed Code Single Speed

XP Temp Code T3
