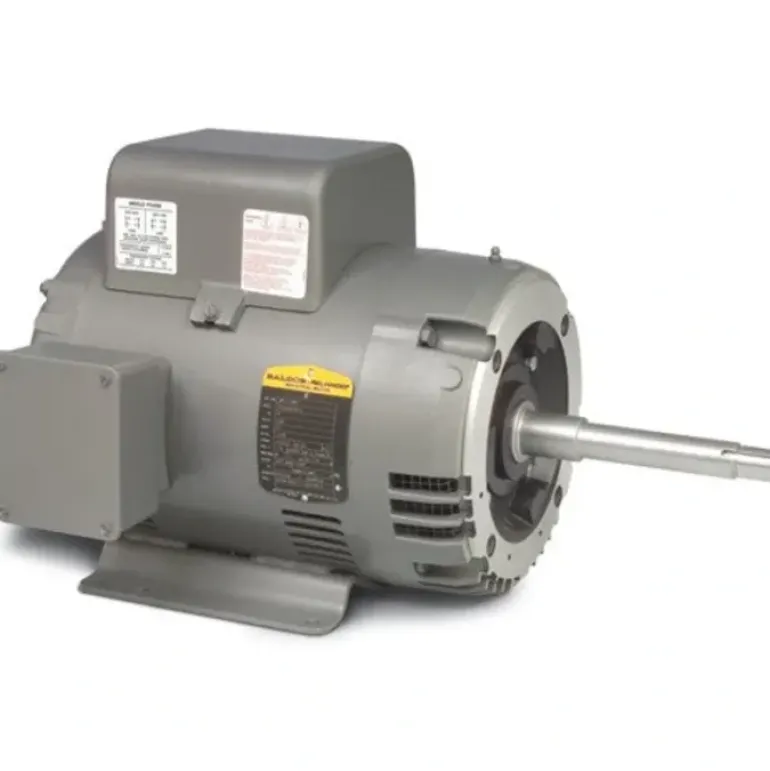

Baldor WCL1508T 5HP, 1725RPM, 1PH, 60HZ, 213TCZ, 3727L, OPSB, F – One-stop shop for professional tools and equipment.

Description

Product Description

Baldor – WCL1508T

Additional Information

ManufacturerBaldor

Nameplate Output0.75

Number of Poles2

Phase1

MultiplierL1

Shaft Diameter (In.)0.625

Speed 3600 RPM

Product Style BUFFER

Wheel Bore Size (In.)0.75

Wheel Diameter(In.)8

Wheel Face(.)1

Starting Method Full Voltage

Frame 213TCZ

Output @ Frequency 5.000 HP @ 60 HZ

Synchronous Speed @ Frequency 1800 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ

Frame Material Steel

Motor Letter Type Cap Start, Induction Run

Catalog Number WCL1508T

Enclosure OPSB

XP Division Not Applicable

Agency Approvals UR

Armature Voltage 180 V

Base Speed 1750 RPM

Field Voltage 230 V

Output Power 5.000 HP

Ambient Temperature 40 °C

Armature Current 174.0 a

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Drip Cover No Drip Cover

Duty Rating CONT

Feedback Device NO FEEDBACK

Field Winding Type COMPOUND

Frame Prefix RL

Heater Indicator No Heater

Insulation Class H

Lifting Lugs No Lifting Lugs

Mounting Arrangement F1

Overall Length 41.14 IN

Service Factor 1.00

Shaft Extension Location Pulley End

Shaft Ground Indicator Shaft Grounding

Shaft Slinger Indicator No Slinger

Motor Standards NEMA

Auxillary Box No Auxillary Box

Constant Torque Speed Range 6-60

Current @ Voltage 350.000 A @ 460.0 V

Design Code L

Efficiency @ 100% Load 84.0 %

Enclosure Modification 841

High Voltage Full Load Amps 350.0 a

Inverter Code Not Inverter

KVA Code K

Motor Lead Quantity/Wire Size 2 @ 16 AWG, A PH

Motor Type 1056M

Power Factor 93

Product Family General Industrial

Pulley End Bearing Type Ball

Pulley Face Code Standard

Shaft Rotation Reversible

Speed Code Single Speed

Thermal Device – Winding Normally Closed Thermostat

XP Temp Code T2C

Max Speed 2700 RPM

Electrically Isolated Bearing Not Electrically Isolated

Front Face Code Terminal Panel

Locked Bearing Indicator No Locked Bearing

Motor Lead Exit Terminal Panel

Motor Lead Termination Flying Leads With QC

Pulley Shaft Indicator Standard

RoHS Status ROHS COMPLIANT

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 Automatic Thermal Overload

Winding Thermal 1 Location ES
