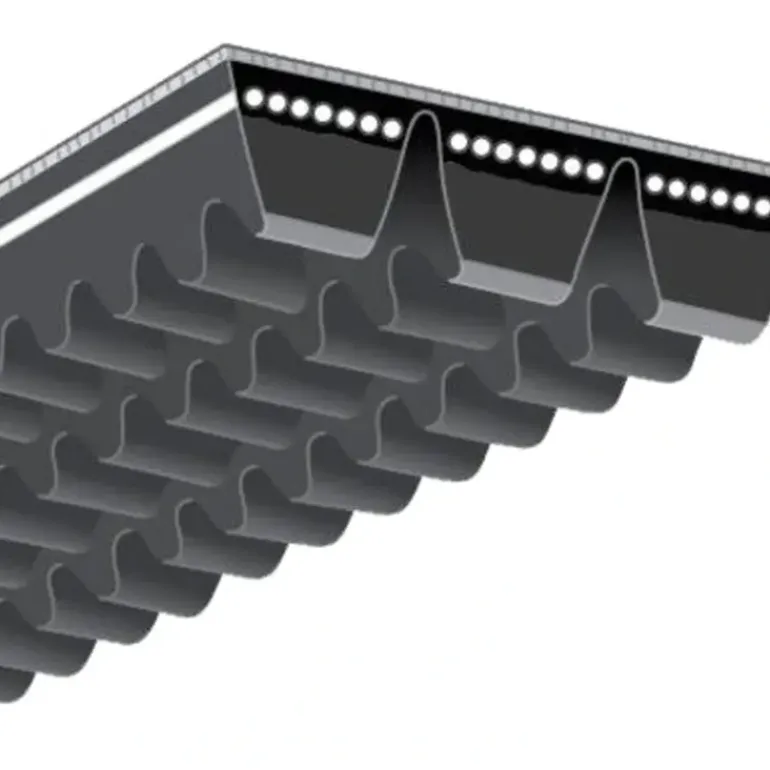

Bando – 12-3VX1000 Power Ace^® Cog Combo
superior load carrying

Power Ace^® Cog Combo combines the superior load carrying capacity of the Power Ace^® Cog belt with the banded construction of Bando™s Combo series to provide an exceptional belt for troublesome applications. The tie band assures lateral rigidity and guides the belts into the sheave grooves.

¢ The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
¢ Power Ace^® Cog Combos utilize the premium quality Power Ace^® Cog belts, with all of their features and benefits.
¢ Provide belt stability in drives where high shock or pulsating loads cause belts to whip, flip over, or jump out of the sheave grooves.
¢ Assure equal load distribution.
¢ Power Ace^® Cog Combos are ideal for use on vertical shaft drives.
¢ Meets ARPM standards for oil and heat resistance and static conductivity.

Click here to find an authorized Bando distributor or call (800) 829-6612.

Additional Information

Price Class642

Weight (lbs)6.24

Multiplier0.3823

Belt Width (In)4.87

Belt Width (mm)123.7

ColorBlack

Ribs/Teeth/Angle12

Height (In)0.37

Height (mm)9.4

Nominal Outside Length (In)100

Nominal Outside Length (mm)2540

Section3VX

Number of Ribs12
