Description

Product Description

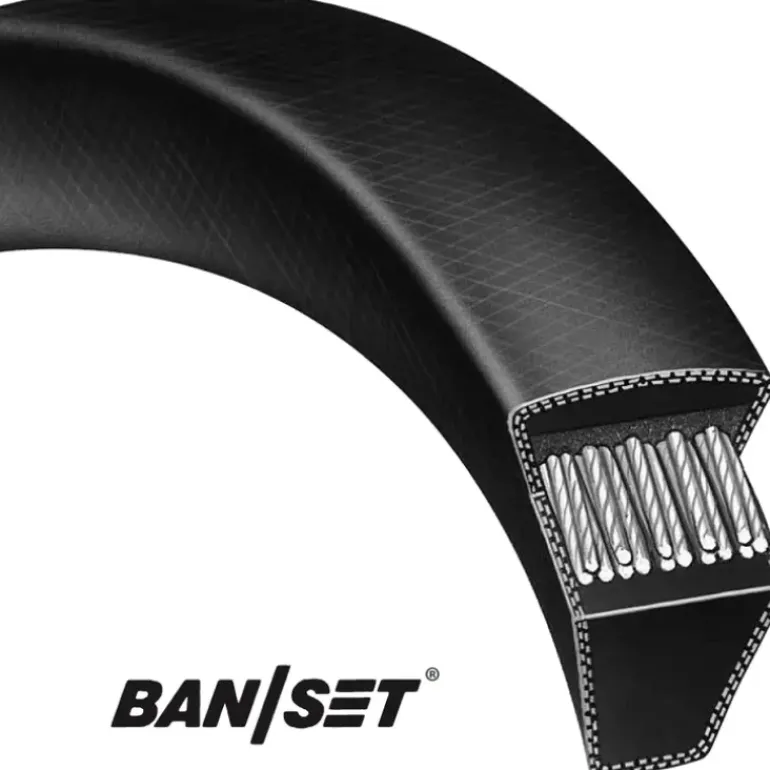

Bando – 3V495 Power Ace^® narrow profile V-belt transmits power more efficiently and effectively, delivering higher horsepower ratings than classical cross section belts. Power Ace^® should be considered for any new drive application, as they can transmit the same load as classical belts in 1/2 to 2/3 the space.

• The special bias-cut angle of the cover fabric reduces stress as the belt bends around sheaves, lowering heat build-up that shortens belt life.
• Extra strong polyester cords are treated for fatigue, stretch resistance, and adhesion to assure the longest possible belt life.
• The rubber compound of the body is engineered to maintain structural uniformity while maintaining the flexibility to reduce heat build-up.
• Meets ARPM standards for oil and heat resistance and static conductivity.

Additional Information

Price Class605

Weight (lbs)0.2475

Multiplier0.531

Belt Width (In)0.38

Belt Width (mm)9.7

ColorBlack

Ribs/Teeth/Angle0

Height (In)0.32

Height (mm)8.1

Nominal Outside Length (In)49.5

Nominal Outside Length (mm)1257.3

Section3V
