Description

Product Description

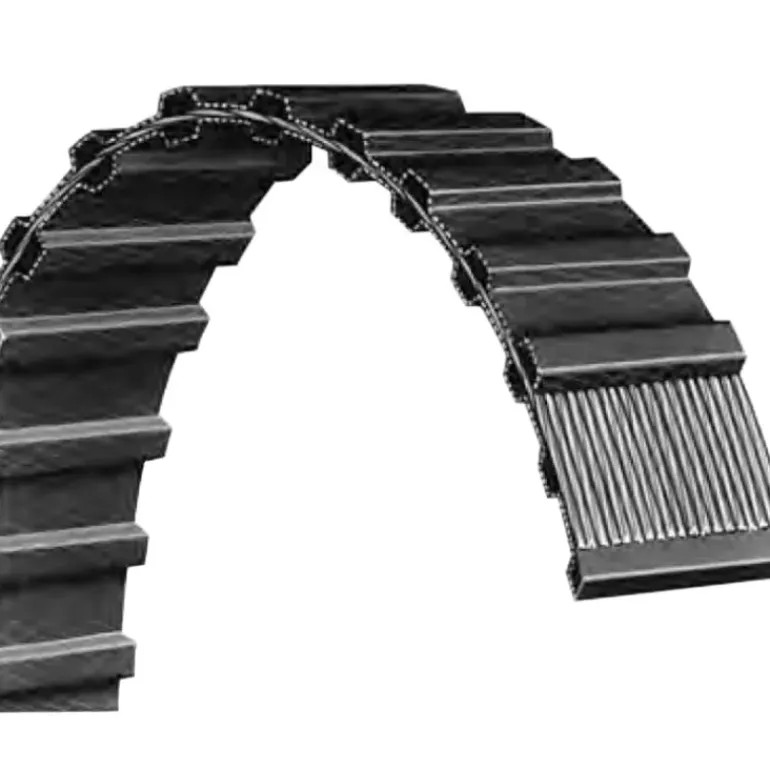

Bando – 400-DS14M-3500 Synchro-Link^® Double Sided Timing Belts provide smooth, precise performance under exacting drive conditions in serpentine drives common in printing, textile and packaging machinery. precision molding process assures “mirror-image” symmetry, so both sides of the belt mesh with the pulley properly and provide maximum belt life.

¢ Flexible neoprene body resists oil, heat, ozone, grease, and moisture for maximum belt life.

¢ Strong, helically-wound fiberglass cords won’t stretch or fatigue under high horsepower loads.

¢ Durable precision formed teeth engage pulley grooves exactly for accurate synchronization from both sides of the belt.

¢ Tough nylon fabric on both sides of the belt protects teeth against wear and abrasion. Low coefficient of friction provides smooth running characteristics.

Additional Information

Price Class535

Weight (lbs)3.22

Number of Teeth250

Tooth Pitch (In)0.5512

Tooth Pitch (mm)14

Tooth ProfileDS14M

Multiplier0.6782

Belt Width (In)1.575

Belt Width (mm)40

ColorBlack

Ribs/Teeth/Angle250

CordFiberglass

Height (In)0.5059

Height (mm)12.85

MaterialNeoprene

Nominal Outside Length (In)137.7953

Nominal Outside Length (mm)3500
