Description

Product Description

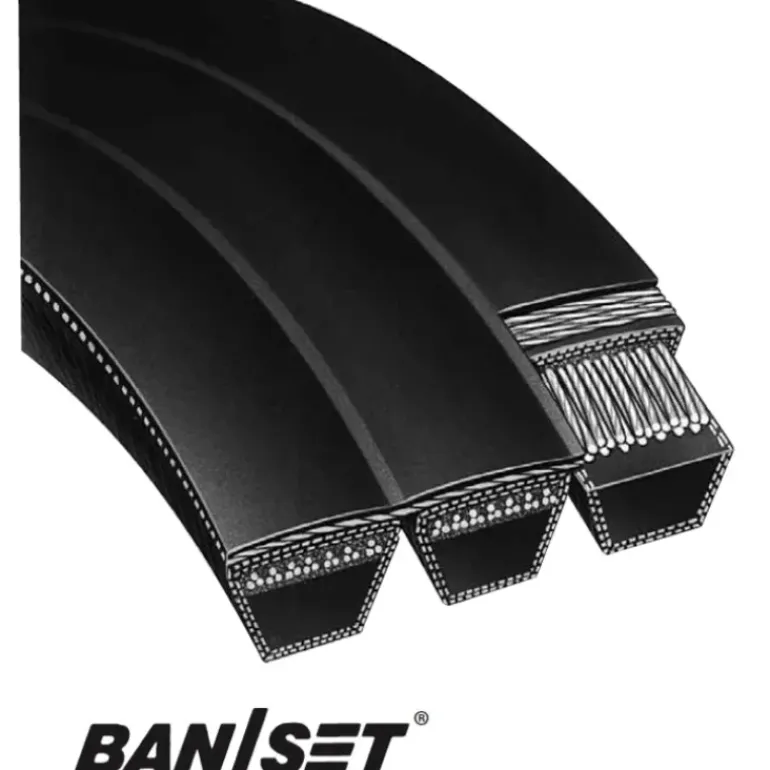

Bando – 7-5VK1000 Power Ace^® Aramid Combo
resolves flipping or jumping problems

To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando™s series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.

• The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
• Combos utilize the premium quality Power King^® and Power Ace^® belts, with all of their features and benefits.
• Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over or jump out of the sheave grooves.
• Combos are ideal for use on vertical shaft drives.
• Meets ARPM standards for oil and heat resistance and static conductivity.

Power Ace^® Aramid Combo belts are constructed with high modulus aramid cords to maintain length stability and to withstand severe shock loads, making them ideally suited for oil, gas, aggregate and lumber industry applications.

Click here to find an authorized Bando distributor or call (800) 829-6612.

Additional Information

Price Class614

Weight (lbs)10.451

Multiplier0.3756

Belt Width (In)4.83

Belt Width (mm)122.7

ColorBlack

Ribs/Teeth/Angle7

CordAramid

Height (In)0.63

Height (mm)16

Nominal Outside Length (In)100.75

Nominal Outside Length (mm)2559.1

Section5VK

Number of Ribs7
