Bando 800-S14M-1400 C-X Ceptor TB – One-stop shop for professional tools and equipment.

Description

Product Description

Bando – 800-S14M-1400 C-X

• High-torque power transmission : Ceptor-X provides higher torque and higher power transmission than normal trapezoidal teeth due to the mesh theory of the unique curvilinear teeth and has achieved high torque and high power transmission by using high-rigidity and high-elasticity components. Although it varies depending on the field, it has a 2.7-fold or more transmission capacity compared to normal STS.

• Low noise : As the belt width can be narrower than the previous specification, the noise can be reduced.

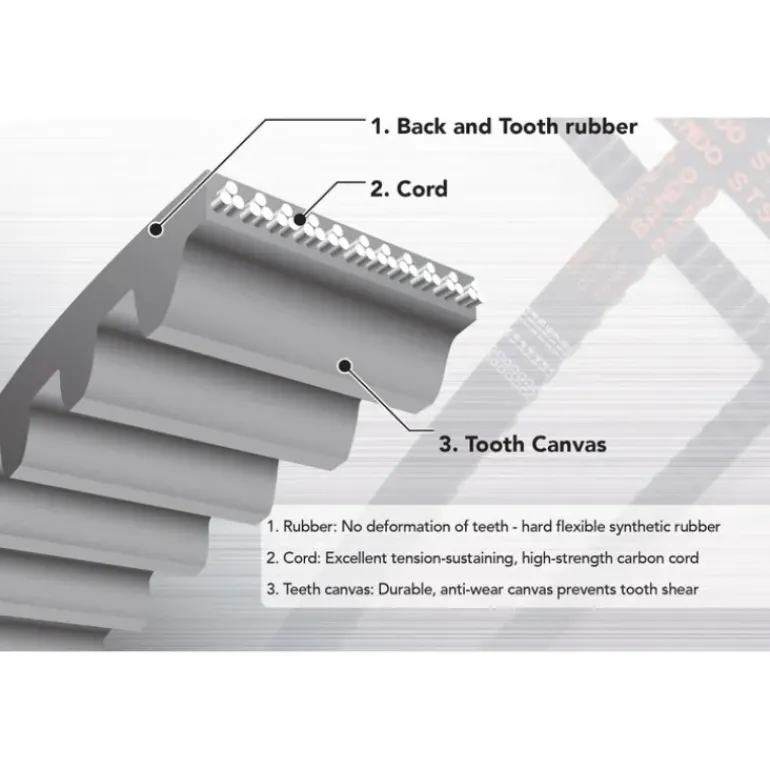

• Rubber : Adoption of a synthetic rubber with little tooth deformation, high hardness, and high elasticity

• Cord : Adoption of ultra-high-elasticity cord with excellent tension maintenance

• Facing fabric : Adoption of facing fabric with excellent tooth chipping resistance and abrasion resistance

• Miniaturized : The high transmission capacity allows a narrower width and a smaller pulley diameter than the previous specifications, allowing compact designs.

• Pulleys used : Ceptor-X can be used with the standard STS pulleys and TL STS pulleys.

Additional Information

Price Class532

Weight (lbs)18.704

Number of Teeth100

Tooth Pitch (In)0.5512

Tooth Pitch (mm)14

Tooth ProfileS14M

Multiplier0.7926

Belt Width (In)3.15

Belt Width (mm)80

ColorBlack

Ribs/Teeth/Angle100

CordCarbon

Height (In)0.4016

Height (mm)10.2

MaterialSynthetic Rubber

Nominal Outside Length (In)55.1181

Nominal Outside Length (mm)1400
