Description

Product Description

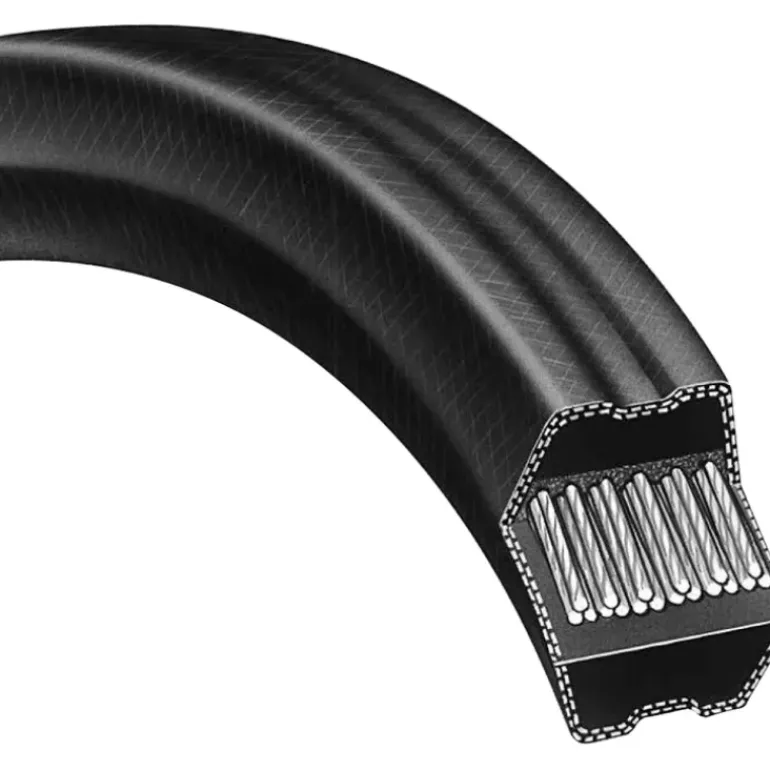

Bando – BB153 Serpentine drives with one or more reverse bends which require power to be transmitted from both sides of the belt can put extra stress on belt components. Bando™s Double V dual-direction flexibility assures long life – as much as 40% more than traditional Double V-belts.

• Ideally suited to handle tough applications such as agricultural, textile and printing machinery.
• High strength polyester tensile cords provide superior length stability and fatigue resistance.
• Cords are bonded together chemically to the body of the belt to prevent separation and to assure long service life.
• The upper and lower sections of the belt are compounded for extra flexibility to allow the belt to bend easily in both directions.
• Designed for low heat build-up to extend belt life.
• Meets ARPM standards for oil and heat resistance and static conductivity.

Additional Information

Price Class603

Weight (lbs)2.142

Multiplier0.7176

Belt Width (In)0.66

Belt Width (mm)16.8

ColorBlack

Ribs/Teeth/Angle0

Height (In)0.53

Height (mm)13.5

Nominal Outside Length (In)155.9

Nominal Outside Length (mm)3959.9

SectionBB
