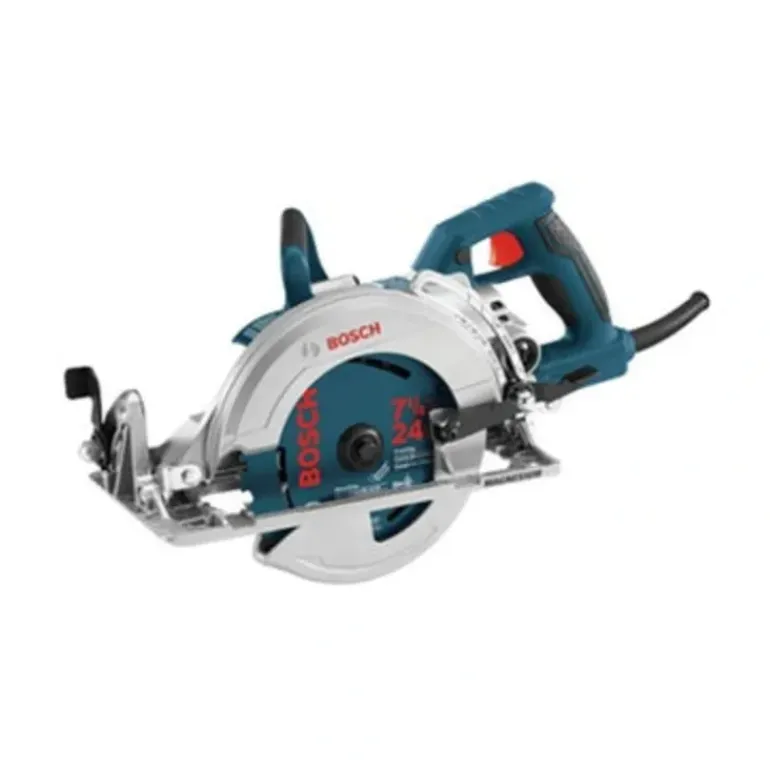

Bosch CSW41 7-1/4 Blade-Left Worm-Drive Circular Saw (15 Amp) – One-stop shop for professional tools and equipment.

Description

Product Description

Bosch – CSW41 The worm drive system on the CSW41 features an enormous gearing ratio in a compact size and provides tremendous power in a manageable package. This model features sturdy magnesium housing and a die-cast magnesium footplate for true strength and a lifetime of reliable use. It also has easily serviceable brushes, large adjustment levers, a spindle lock, and a built-in saw hook for easy storage between tasks. Top it off with a soft grip handle for comfort, control, and accuracy, and this is an exceptional piece of equipment.

Features

• Light weight magnesium motor housing and foot plate construction “ lighter weight saw reduces user fatigue for less down time
• Built-in saw hook “ allows convenient saw storage between cuts
• Featherboard multi-function wrench “ for blade and brush change, lever adjustments and blade diamond center knockout
• Accurate depth of cut system allows for quick accurate adjustment
• Left side blade design for unmatched clarity of cut line
• Anti-snag lower guard “ provides smooth operation for small cut-off pieces
• Soft-grip handles for comfort and control
• 53Ë bevel capacity with positive detent stop at 45Ë
• Large adjustment levers for fast, accurate bevel and depth adjustments
• Easy access spindle lock for easy blade changes
• Powerful 15 amp motor provides power for a variety of cutting applications

Includes

• (1) CSW41 7-1/4 In. Blade-Left Worm Drive Saw
• (1) Multi-Function Blade Wrench
• (1) Carbide Blade
• (1) Built-In Saw Hook

Additional Information

ManufacturerBosch

Amperage15

Arbor SizeDiamond

Blade Diameter7.25

Blade Size7-1/4″

Cord Length8 ft

Max. Bevel Capacity53

Max. Depth of Cut at 45°1-15/16″

Max. Depth of Cut at 90°2-3/8″

No Load RPM5,300

Service Baretool Numbers3601F6D010

Weight6.8800 kg

Width228.600 mm

Height196.850 mm

Length520.700 mm

Voltage120V

Fence IncludedNo

Spindle LockYes

Material StatusActive

Date of Valid Distribution Status20220103

Country of OriginChina

Maximum RPM – No Load5300

Preset Bevel Angle Detents45°

Saw DriveWorm Drive Geared

Blades Included1

Case TypeNo Case Included

Dust CollectionNo

Electric Motor BrakeNo

External Motor Brush AccessYes

Max. Depth of Cut at 50°1-13/16″

Integrated Rafter HookYes

Depth of Cut2-3/8″
