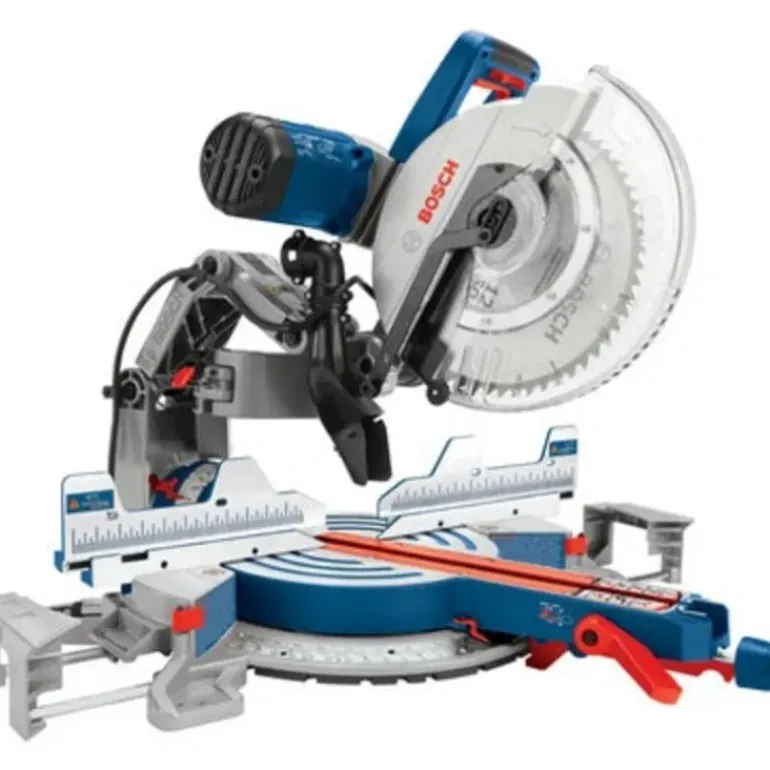

Bosch GCM12SD 12& Dual Bevel Glide Miter Saw – One-stop shop for professional tools and equipment.

Description

Product Description

Bosch – GCM12SD The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw’s 15 Amp motor delivers no-load speeds of 4,000 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw’s all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.

Features

• Miter Saw, 60 Tooth Blade, Material Clamp, Dust Bag
• The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
• Integrated expanding base extensions: 60% more left-to-right material support than leading competitor ‚ 40 In. left to right
• Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
• Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design
• Push-button miter detent override ‚ easy-to-access thumb actuated control right up front for fine miter angle adjustment
• Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
• Category best 90% dust collection ‚ optimized for cutting 2x material with a vacuum
• Ergonomic, ambidextrous trigger handle with soft grip ‚ large form fitting ergonomic handle provides comfort for all-day use
• The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance and a space-saving design of the Bosch-exclusive Axial-Glide system
• Pre-aligned SquareLock fences help the saw maintain precision throughout its life
• A soft-grip ambidextrous handle along with a combination dust chute and vacuum adapter add to user comfort

Includes

• (1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw
• (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
• (1) Wrench
• (1) Toolless Vertical Work Clamp
• (1) Dust Bag/Assembly
• (1) Vacuum Adapter Elbow

Additional Information

ManufacturerBosch

Amperage15

Bevel Angle Range47° left and 47° right

Blade Diameter12

Blade Size12″

Cord Length6 ft

Max. Motor HP3

No Load RPM4,000

Service Baretool Numbers3601F65011, 3601F65010

Weight33.5660 kg

Width842 mm

Height674 mm

Length604.520 mm

Voltage120V

Spindle LockYes

Material StatusActive

Date of Valid Distribution Status20220103

Country of OriginChina

AttachmentsBosch MS1234 Bosch VAC021 Bosch VAC008 Bosch VH1035 Bosch VAC024 Bosch VAC006 Bosch VAC010 Bosch VAC020 Bosch GTA3800 Bosch MS1233 Bosch VAC002 Bosch VAC005 Bosch VH1622A Bosch T4B Bosch VH1635 Bosch VAC007 Bosch VH1635A Bosch LS010 Bosch VH1022 Bosch VAC009

Maximum RPM – No Load4000

Preset Bevel Angle Detents0° Left / Right 22.5° 45°

Saw DriveBelt Drive

Blades Included1

Case Type–

Dust CollectionYes

Electric Motor BrakeYes

External Motor Brush AccessNo
