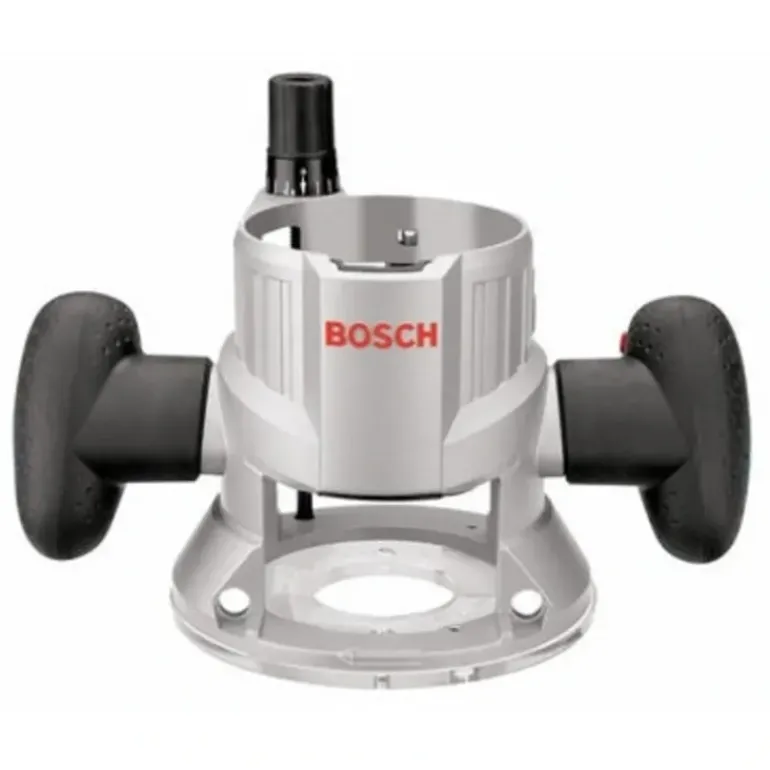

Bosch MRF01 Router Fixed Base For Mr23 Series – One-stop shop for professional tools and equipment.

Description

Product Description

Bosch – MRF01 The Bosch MRF01 fixed base is designed exclusively for use with Bosch MR23EVS router motor. It features a trigger-controlled power switch in the right handle, so you don’t have to reach up to a switch on the motor to turn the tool on and off. The motor is held by the base using the Bosch-invented router quick-clamp system, allowing tool-free movement of motor from base to base. The MRF01 fixed base features a versatile depth adjustment that allows for easy macro- and micro-fine adjustment with a 1-5/8 continuous micro-fine adjustment range. It also features the Bosch Precision Centering Design that allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigjigs, templets, dovetail fixtures and similar guidance devices. This base also has threaded holes positioned in common 3-hole pattern for mounting to a router table. Moreover, it features the ability to adjust the depth from above an optional router table using the included T-wrench, so there is no need to buy an expensive after-market router lift. Hardware for mounting to an optional router table is also included. The MRF01 fixed base accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide and RA1176AT Dust Hood Kit.

Features

• 1 Fixed Base
• Fixed base with fine adjustment knob with on/off switch located in the handle
• Trigger control system conveniently located in handle for enhanced control
• Versatile fixed base adjustment system for easy and precise bit depth adjustment
• Macro and microfine adjustment system with resettable depth indicator Large 3-3/4 In. base opening and 2 In. sub-base opening accepts larger bits
• Precision centering design – makes it easy to keep bit on intended cutline when using jigs, templates, dovetail fixtures and similar guidance devices
• Compatible with optional RA1129 Template Guide Adapter Set “ for easy change of Bosch quick-release template guides and common threaded template guides

Additional Information

ManufacturerBosch

Weight1.7600 kg

Width190.500 mm

Height190.500 mm

Length292 mm

Material StatusActive

Date of Valid Distribution Status20220103

Country of OriginChina

AttachmentsBosch RA1181 Bosch RA1175 Bosch RA1151 Bosch 2610956311 Bosch RA1126 Bosch RA1176AT Bosch RA1171 Bosch RA1054 Bosch RA1152

Used on Model No.Bosch Models MR23EVS

Fits Tool ModelMR23EVS Router Motor

Subbase Opening2″
