Braeburn 2020NC Universal 7 Day, 5-2 Day or Non-Programmable 1H / 1C – One-stop shop for professional tools and equipment.

Description

Product Description

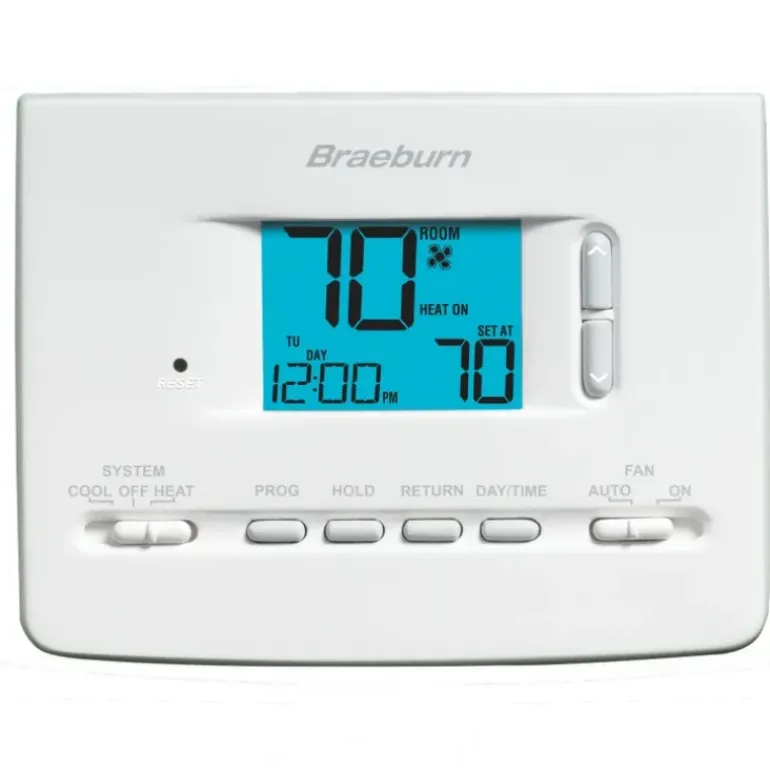

Braeburn – 2020NC Builder 5-2 Day Programmable Thermostat 1H / 1C

Features

• 7 Day, 5-2 Day or Non-Programmable
• Large 2 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Filter Check Monitor
• Adjustable Temperature Differential
• Adaptive Recovery Mode (ARM )
• Meets Energy Aware® Guidelines*
• ESD Guard Electronic Circuitry
• Compressor Short Cycle Protection
• Temporary Program Override
• Programmable Extended Hold Mode
• Front Access Reset Button
• F˚ / C˚ Switch
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Additional Information

Dimensions 3.62” x 4.72” x 1.38”

Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 3 amp total maximum load (all terminals)

AC Power 18-30 Volt AC

DC Power 3.0 Volts DC, (2 “AA” Alkaline batteries included)

Compatibility Single stage gas, oil or electric systems, Single stage heat pump systems, 250mv – 750mv millivolt heating systems

Control Range 45° to 90° F (7° to 32° C)

Display Range 40° to 99° F (5° to 37° C)

Accuracy +/- 1° F (+/- .5° C)

Temperature Differential .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

Storage Temperature 14° to 140° F (-10° to 60° C)

Operating Humidity 5% to 95% Relative Humidity

Terminations Rc, Rh, O, B, Y1, W1, G, C
