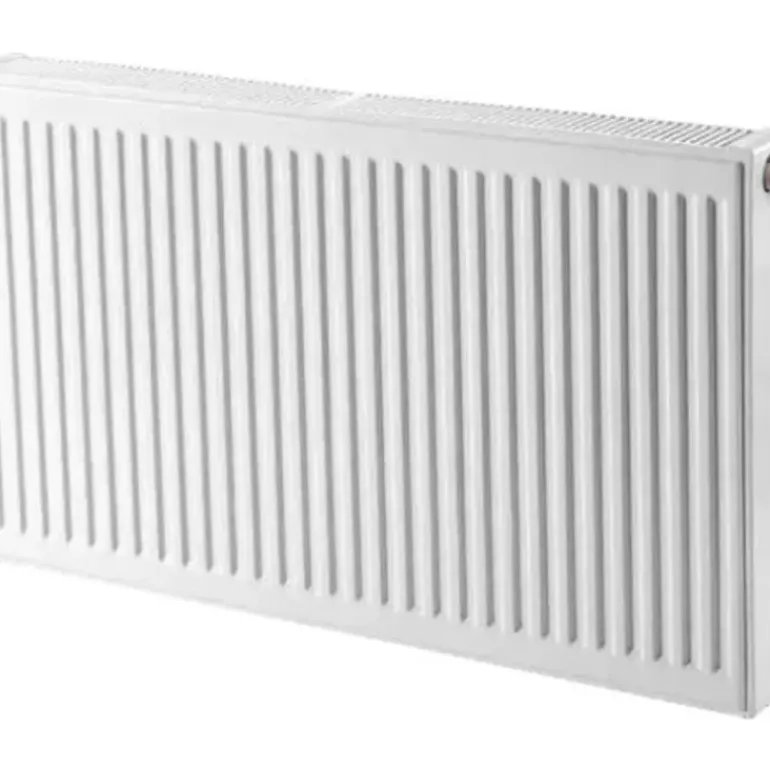

Buderus Model 22, 12& x 16& Hydronic Panel Radiator w/ Bracket – One-stop shop for professional tools and equipment.

Description

Product Description

Bosch Water Heater – 7-750-100-604 Panel radiator(s) shall be constructed with a fl uted front panel made from .049 steel and convection tunnels welded on the water channels. Panel radiator(s) shall have a white (color code RAL 9016), baked on powder coating finish.Panel radiator(s) shall have piping connections located at the bottom of the panel. The piping connections are R20 type metric male (approximately 3/4) located in the bottom left or right hand corner of the radiator. Panel radiator(s) shall be fi eld reversible for either right or left piping connections.
Panel radiator(s) shall be equipped with an air bleeder and fl ow setter. The fl owsetter valve enables the system installer to quickly and easily regulate the water flow through the radiator(s) room by room for consistent, even heat throughout the structure. Panel radiator(s)may be equipped with a thermostatic valve head that is mounted on the fl ow-setter allowing for further individual radiator / room temperature control.

Additional Information

Part Number7-750-100-604

Dimensions-H x L x W (in.)12″ x 16″ x 4″

Dimensions-H x L x W (mm)300 x 400 x 102

BTU Output-180 °F (82 °C)1573

BTU Output-160 °F (71 °C)1180

BTU Output-140 °F (60 °C)819

Weight-lbs15.08

Weight-kg6.84

Water Volume-gal0.44

Water Volume-liters1.68
