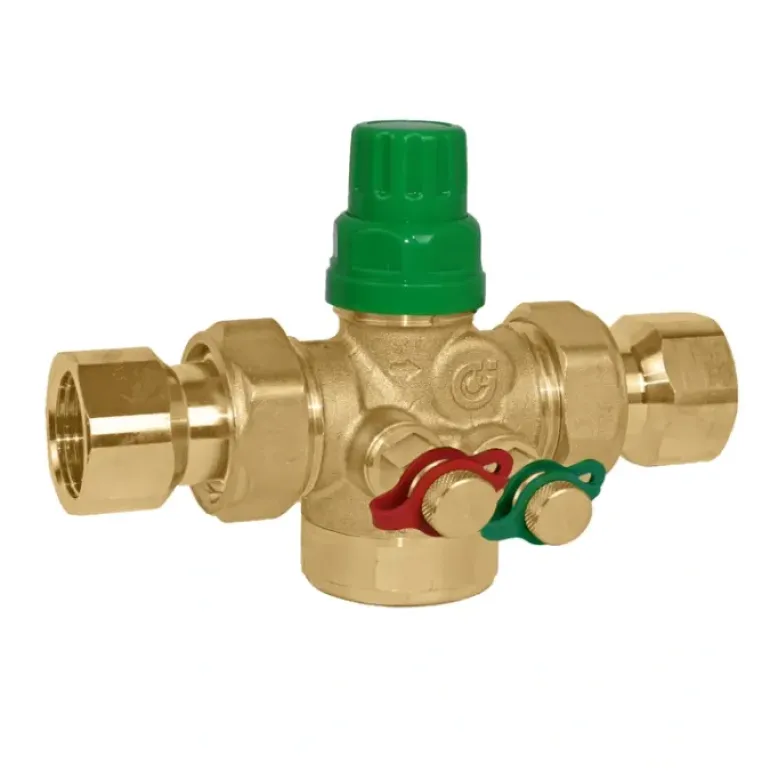

Caleffi 145553A G90 FLOWMATIC® PICV Dual Union 3/4& FNPT, 0.9 GPM – One-stop shop for professional tools and equipment.

Description

Product Description

Caleffi – 145553A G90 Pressure independent control valve (NPT) Flow rate is adjusted in two different ways – Manually, on the automatic flow rate regulator (to restrict the maximum value);- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.

Additional Information

Connection 3/4″ Fnpt, Union

Maximum Working Pressure 360 Psi

Medium Temperature Range 4-248 °F

Maximum Percentage Of Glycol 50 %

Medium Technical Water, Glycol Solutions

Flow Rate Working Range 008–040 M³/H

Material Dezincification Resistant Brass
