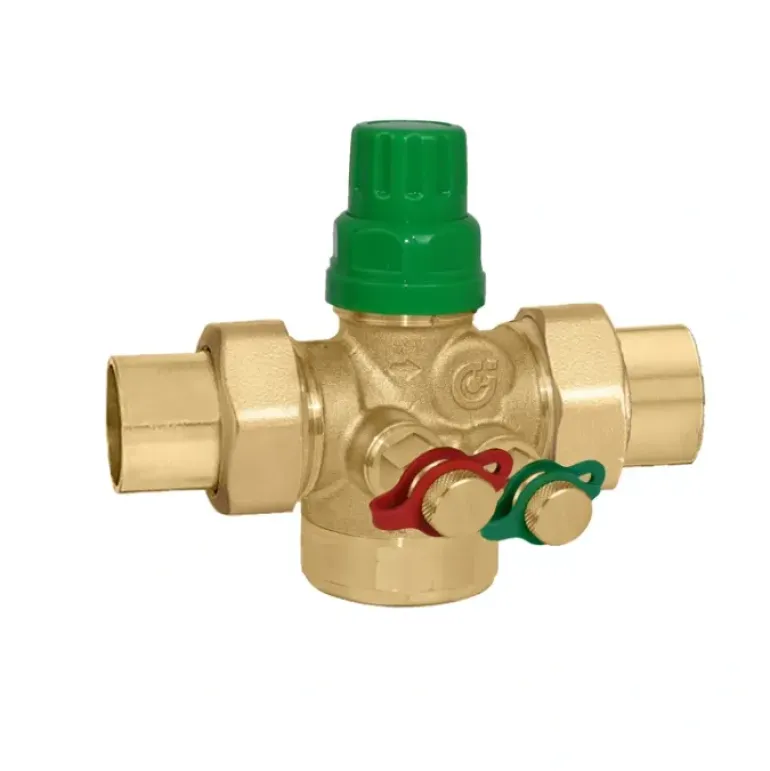

Caleffi 145559A 5G3 FLOWMATIC® PICV Dual Union 3/4& SWT, 5.3 GPM – One-stop shop for professional tools and equipment.

Description

Product Description

Caleffi – 145559A 5G3 Pressure independent control valve (sweat) Flow rate is adjusted in two different ways – Manually, on the automatic flow rate regulator (to restrict the maximum value);- Automatically, by the control valve in combination with a proportional (0–10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit being controlled.

Additional Information

Connection 3/4″, Sweat Union

Maximum Working Pressure 360 Psi

Medium Temperature Range 4–248 °F

Maximum Percentage Of Glycol 50 %

Medium Technical Water, Glycol Solutions

Flow Rate Working Range 008–040 M³/H

Material Dezincification Resistant Brass
