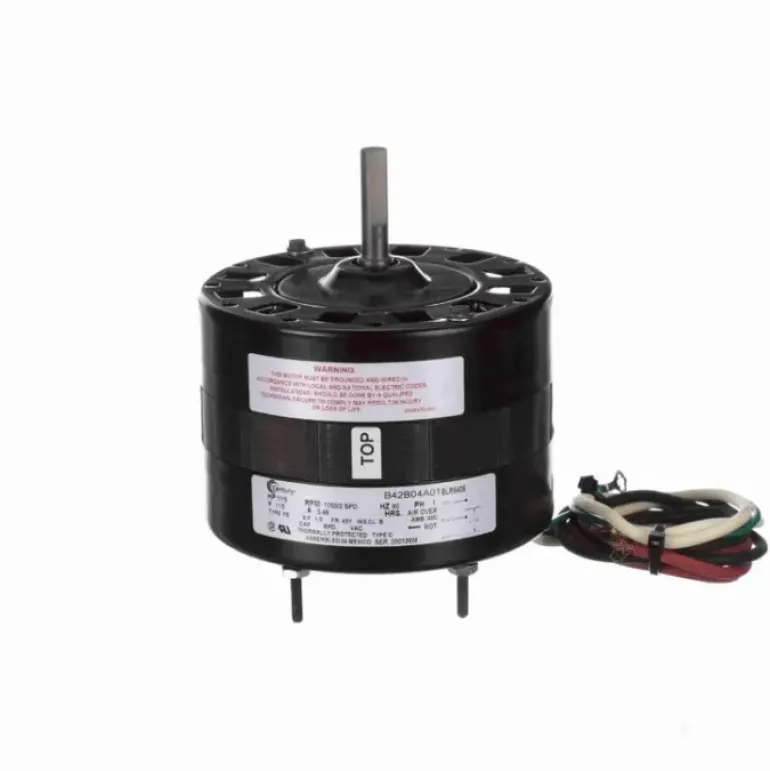

Century Fan and Blower Motor, 1/15 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 2 Speed, 42 Frame, SEMI ENCLOSED – BLR6405 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – BLR6405

• Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
• 5″ Diameter – 42 Frame
• Shaded Pole
• Thermally Protected
• Open Shaft End End-Frame and Lead End End-Frame, Half Open Shaft End and Lead End Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8″ Diameter Shaft with Flat
• 20″ Leads
• Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current3.48 A

Number of Speeds2

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight5.00 LB

Country Of originMexico

Output HP1/15 Hp

Output KW0.05 kW

Service Factor1

Frame42Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypeShaded Pole

Poles6

RotationCounterclockwise Lead End

MountingExtended Studs

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Shaft Diameter0.375 in

Shaft Extension1.9 in

HTC8501.40.2040

CEN

Starting MethodAcross The Line
