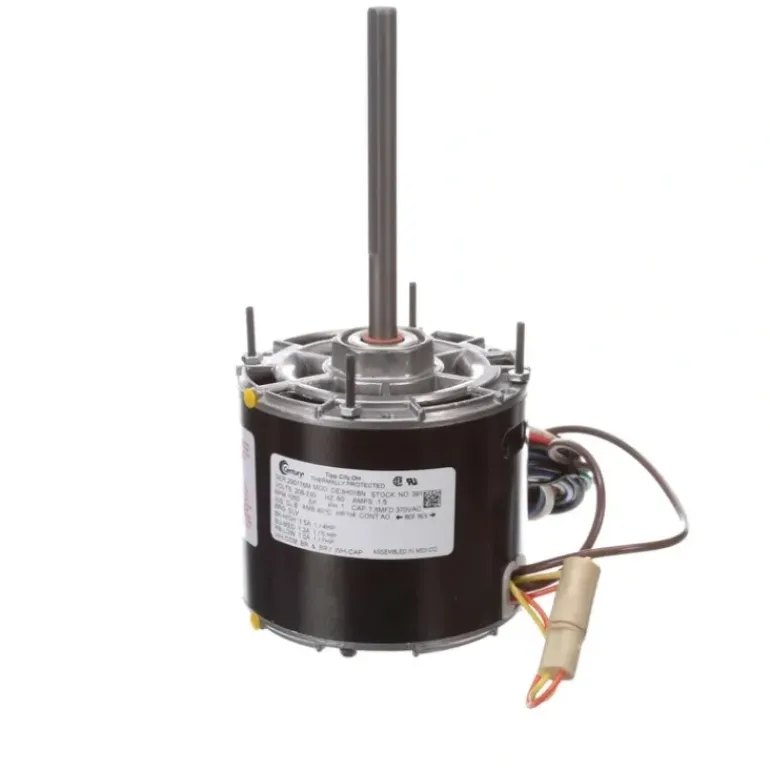

Century Fan and Blower Motor, 1/20, 1/75, 1/120 HP, 1 Ph, 60 Hz, 115 V, 1100 RPM, 3 Speed, 42 Frame, OAO – 9608 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – 9608

• Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
• 5″ Diameter – 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Flat
• 44″ Leads
• Resilient Base

Additional Information

Thermal ProtectionThermally Protected

Speed1100 rpm

Current.60 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight8.00 LB

Country Of originMexico

Output HP1/20, 1/75, 1/120 Hp

Output KW0.04 kW

Service Factor1

Frame42

EnclosureOpen Air Over

DutyContinuous Air Over

Electrical TypePermanent Split Capacitor

Poles6

RotationReversible

MountingResilient Base

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length2.67 in

Shaft Diameter0.500 in

Shaft Extension9 7/8 in

HTC8501.10.6020

CEN

Starting MethodAcross The Line
