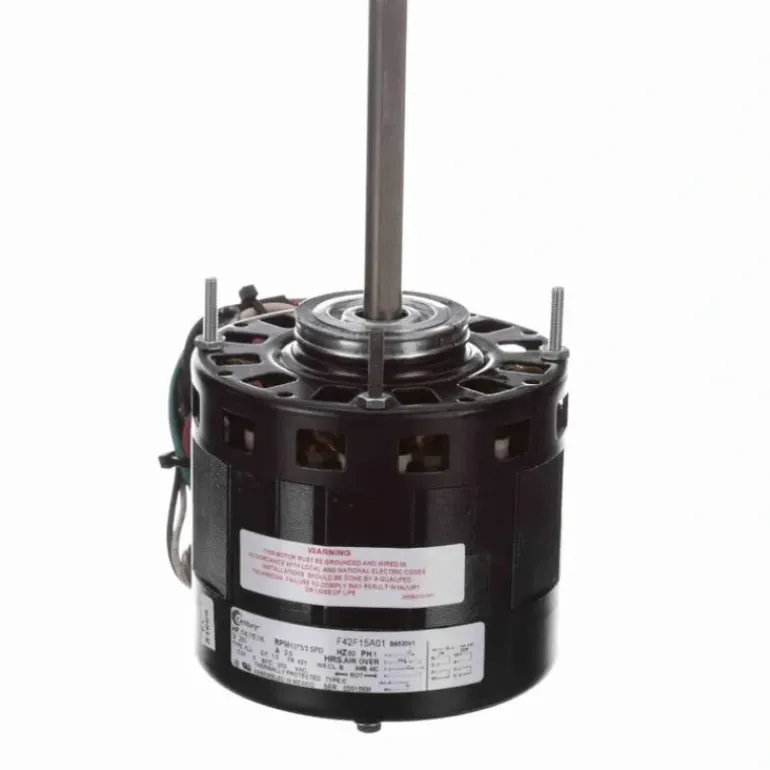

Century Fan and Blower Motor, 1/4 1/5 1/6 HP, 1 Ph, 60 Hz, 230 V, 1075 RPM, 3 Speed, 42 Frame, OAO – B6520V1 – One-stop shop for professional tools and equipment.
$53.99
Description
Product Description
Century – B6520V1
- Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
- 5″ Diameter – 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Semi-Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2″ Diameter Shaft with Flat
- 29″ Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.0 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4 1/5 1/6 Hp
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialN/A
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension4.7 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
