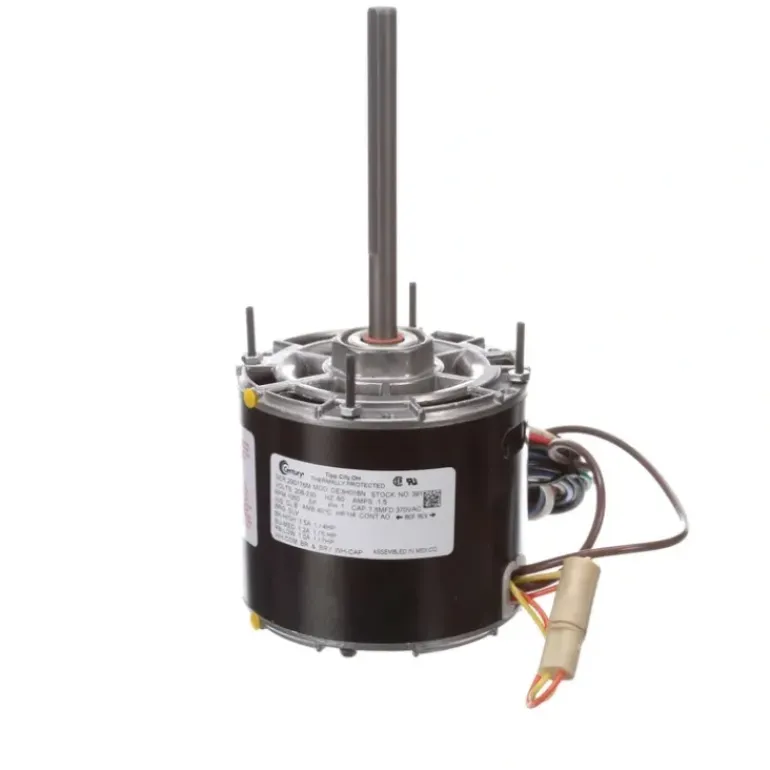

Century Fan and Blower Motor, 1/4, 1/5, 1/7 HP, 1 Ph, 60 Hz, 208-230 V, 1050 RPM, 3 Speed, 42 Frame, OAO – 391 – One-stop shop for professional tools and equipment.
Original price was: $77.46.$53.89Current price is: $53.89.
Description
Product Description
Century – 391
- Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
- 5″ Diameter – 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2″ Diameter Shaft with Flat
- 31″ Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.70, 1.31, 1.10 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.00 LB
Country Of originMexico
Output HP1/4, 1/5, 1/7 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingResilient Ring/Extended Studs
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.67 in
Shaft Diameter0.500 in
Shaft Extension6 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
