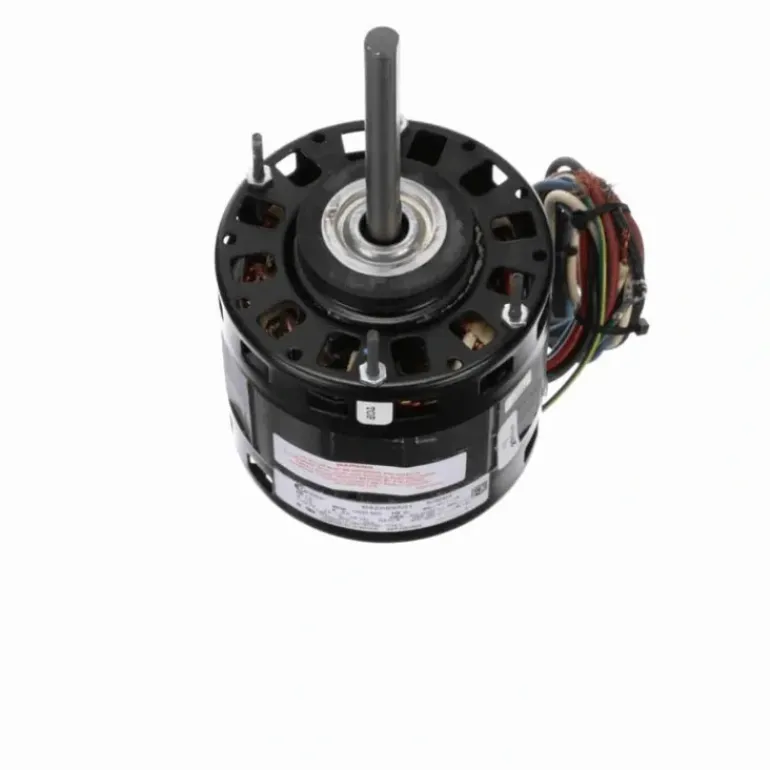

Century Fan and Blower Motor, 1/4 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 1 Speed, 42 Frame, OAO – BLR640S – One-stop shop for professional tools and equipment.

Description

Product Description

Century – BLR640S

• Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
• 5″ Diameter – 42 Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Flat
• 24.5″ Leads
• Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current9.4 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight10.00 LB

Country Of originMexico

Output HP1/4 Hp

Output KW0.19 kW

Service Factor1

Frame42Y

EnclosureOpen Air Over

DutyAir Over

Electrical TypeShaded Pole

Poles6

RotationCounterclockwise Lead End

MountingExtended Studs

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialN/A

Shaft TypeFlat

Shaft Diameter0.500 in

Shaft Extension4.5 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
