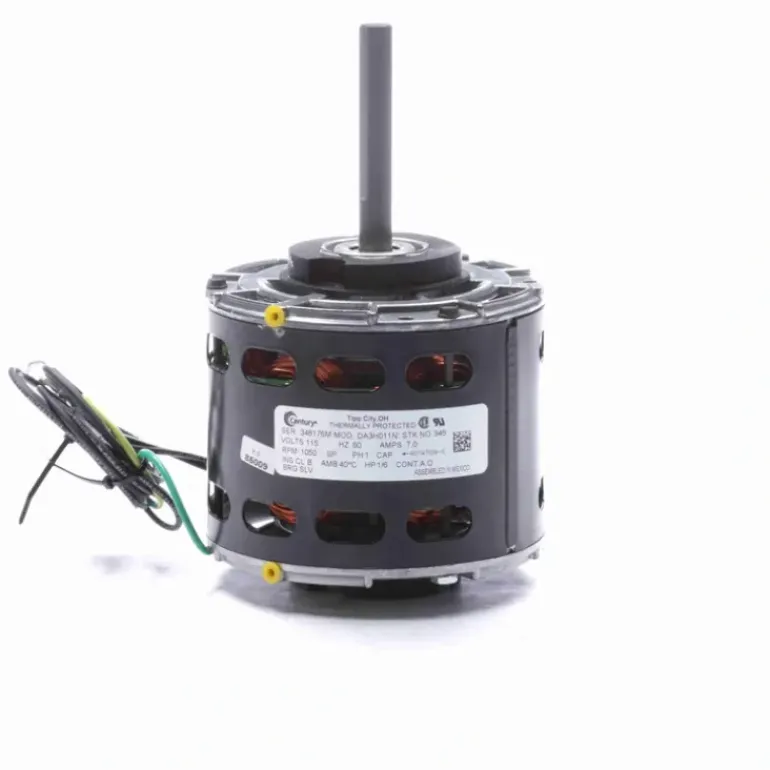

Century Fan and Blower Motor, 1/5-1/6-1/8 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 3 Speed, 42 Frame, OAO – 9695 – One-stop shop for professional tools and equipment.
Original price was: $72.80.$49.99Current price is: $49.99.
Description
Product Description
Century – 9695
- Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
- 5″ Diameter – 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2″ Diameter Shaft with Flat
- 30″ Leads
- Extended Studs Shaft End, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current6.8/5.3/4.2 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight11.00 LB
Country Of originMexico
Output HP1/5-1/6-1/8 Hp
Output KW0.15 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Rings
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.42 in
Shaft Diameter0.500 in
Shaft Extension5.5 in
HTC8501.40.4040
CEN
Starting MethodAcross The Line
