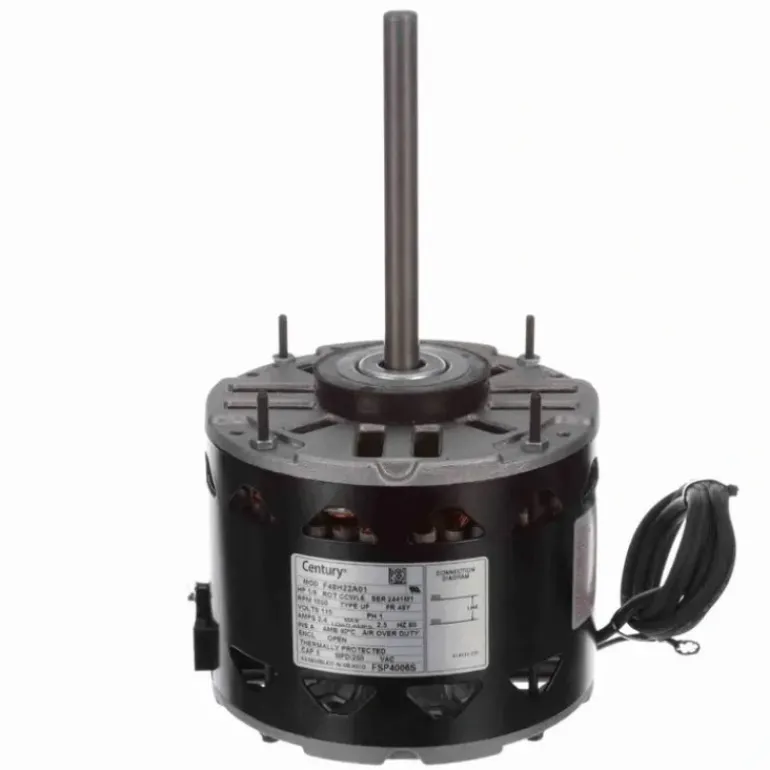

Century Fan and Blower Motor, 1/8 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 1 Speed, 48 Frame, OPEN – FSP4006S – One-stop shop for professional tools and equipment.

Description

Product Description

Century – FSP4006S

• Furnace – Air Handler – Fan Coil Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-250 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Shaft with Flat
• 29″ Leads
• Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current2.4 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAN

Weight9.00 LB

Country Of originMexico

Output HP1/8 Hp

Output KW0.10 kW

Service Factor1

Frame48Y

EnclosureOpen Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationCounterclockwise Lead End

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length3.75 in

Shaft Diameter0.500 in

Shaft Extension5.4 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
