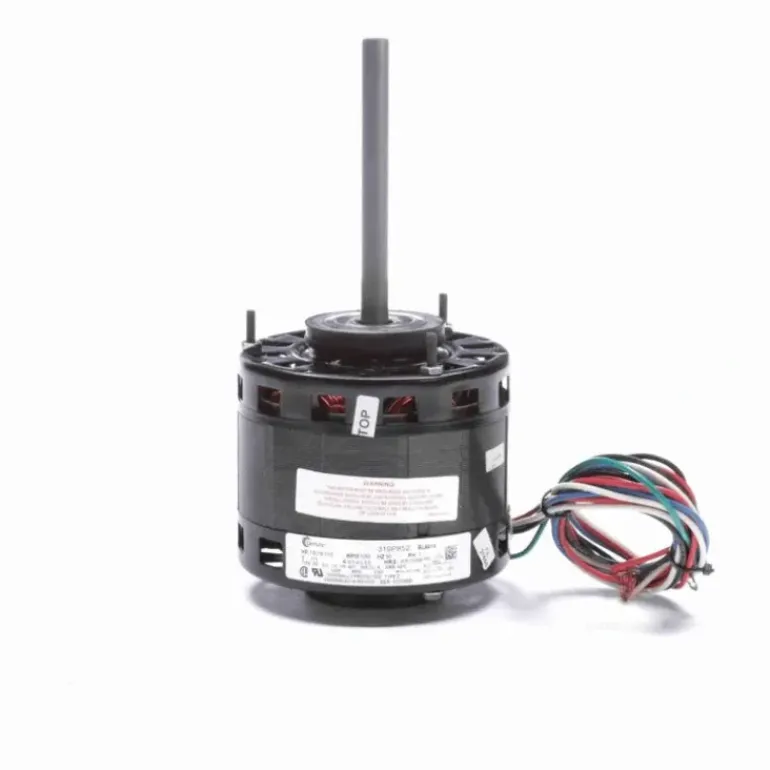

Century Fan and Blower Motor, 1/8,1/11 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 2 Speed, 42 Frame, OAO – BL6423 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – BL6423

• Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
• 5″ Diameter – 42 Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Flat
• 27″ Leads
• Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current5.0 A

Number of Speeds2

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight7.00 LB

Country Of originMexico

Output HP1/8,1/11 Hp

Output KW0.10 kW

Service Factor1

Frame42Y

EnclosureOpen Air Over

DutyAir Over

Electrical TypeShaded Pole

Poles6

RotationCounterclockwise Lead End

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Shaft Diameter0.500 in

Shaft Extension3.8 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
