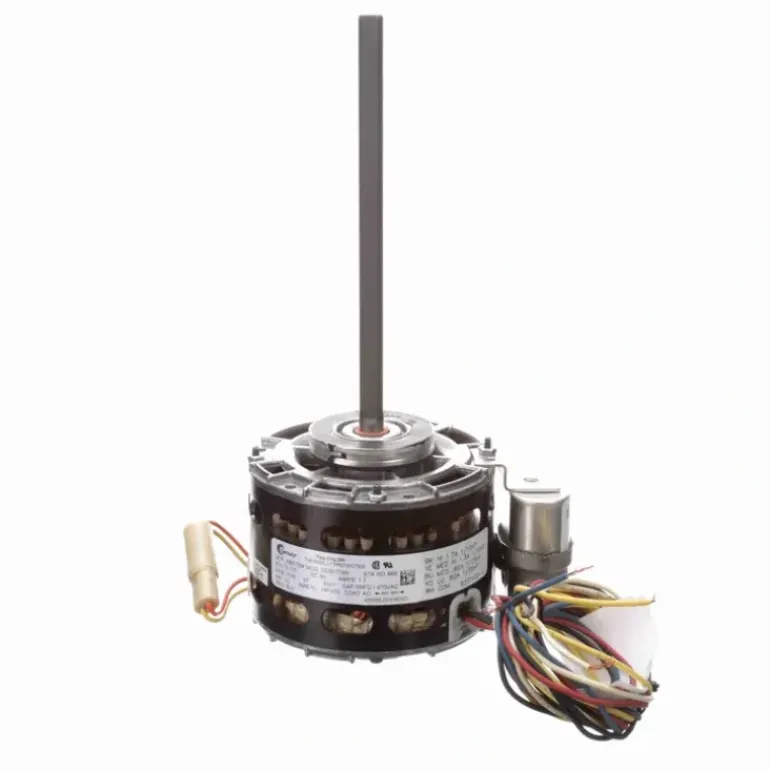

Century Fan Coil & Air Conditioner Motor, 1/10, 1/15, 1/25, 1/35 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 4 Speed, 42 Frame, OAO – 669 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – 669

• Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
• 5″ Diameter – 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Flat
• 48″ Leads
• Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current1.7 A

Number of Speeds4

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAY

Weight9.00 LB

Country Of originMexico

Output HP1/10, 1/15, 1/25, 1/35 Hp

Output KW0.07 kW

Service Factor1

Frame42

EnclosureOpen Air Over

DutyContinuous Air Over

Electrical TypePermanent Split Capacitor

Poles6

RotationReversible

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length2.92 in

Shaft Diameter0.500 in

Shaft Extension8.58 in

HTC8501.40.2040

CEN

Starting MethodAcross The Line
