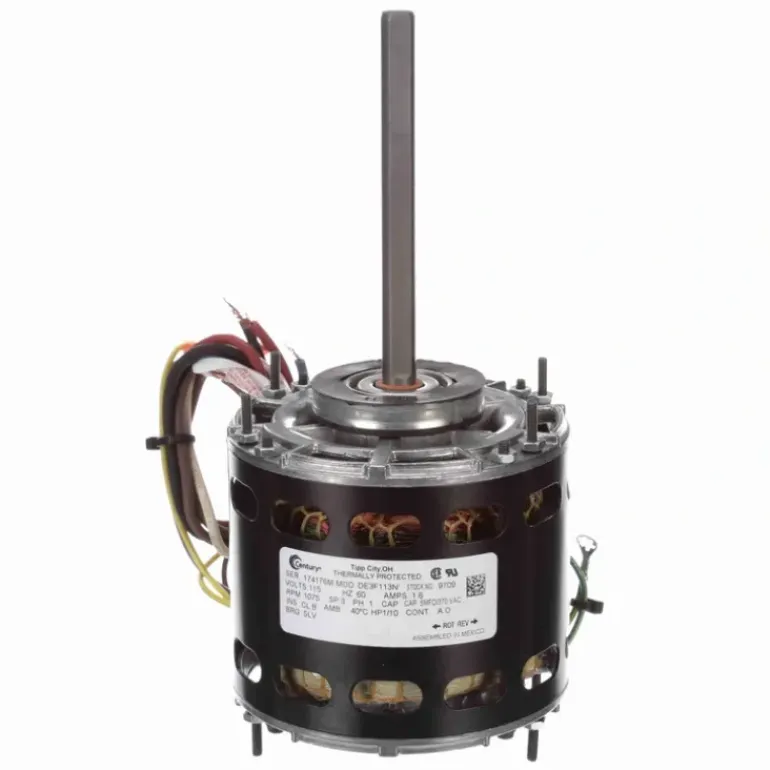

Century Fan Coil & Air Conditioner Motor, 1/10 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 42 Frame, OAO – 9709 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – 9709

• Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
• 5″ Diameter – 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Flat
• 13″ Leads
• Extended Studs Shaft End and Opposite Shaft End, Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current1.6 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight9.00 LB

Country Of originMexico

Output HP1/10 Hp

Output KW0.07 kW

Service Factor1

Frame42Y

EnclosureOpen Air Over

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationReversible

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length3.67 in

Shaft Diameter0.500 in

Shaft Extension5.8 in

HTC8501.40.2040

CEN

Starting MethodAcross The Line
