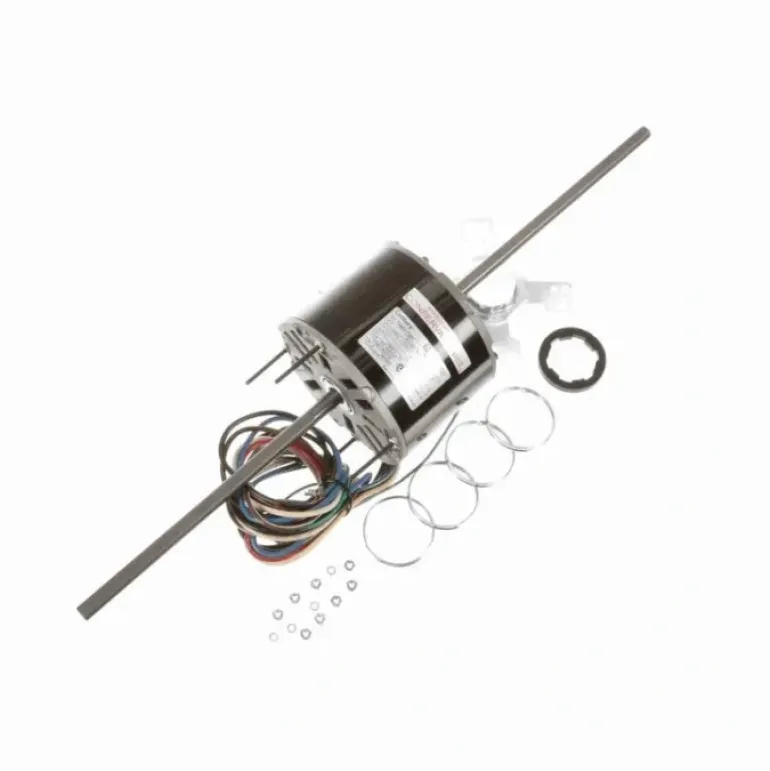

Century Fan Coil & Air Conditioner Motor, 1/4 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED – RAL1026A – One-stop shop for professional tools and equipment.

Description

Product Description

Century – RAL1026A

• Fan Coil – Room Air Conditioner – Blower Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Double Shaft with Flat
• 35″ Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current5.0 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAY

Weight20.00 LB

Country Of originMexico

Output HP1/4 Hp

Output KW0.19 kW

Service Factor1

Frame48Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationCounterclockwise Lead End

MountingResilient Ring/Extended Studs

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length3.63 in

Shaft Diameter0.500 in

Shaft Extension9.88 x .5 x 9.88 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
