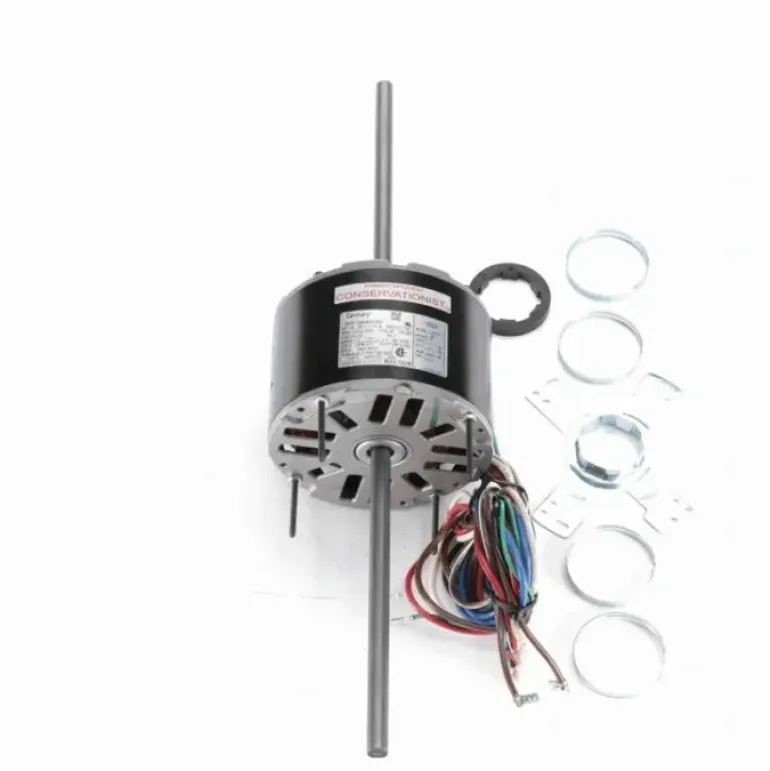

Century Fan Coil & Air Conditioner Motor, 1/6 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED – RAL1016 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – RAL1016

• Fan Coil – Room Air Conditioner – Blower Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Double Shaft with Flat
• 35″ Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current2.2 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAY

Weight12.00 LB

Country Of originMexico

Output HP1/6 Hp

Output KW0.13 kW

Service Factor1

Frame48Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationCounterclockwise Lead End

MountingResilient Ring/Extended Studs

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length3.25 in

Shaft Diameter0.500 in

Shaft Extension8.1X.5X8.0 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
