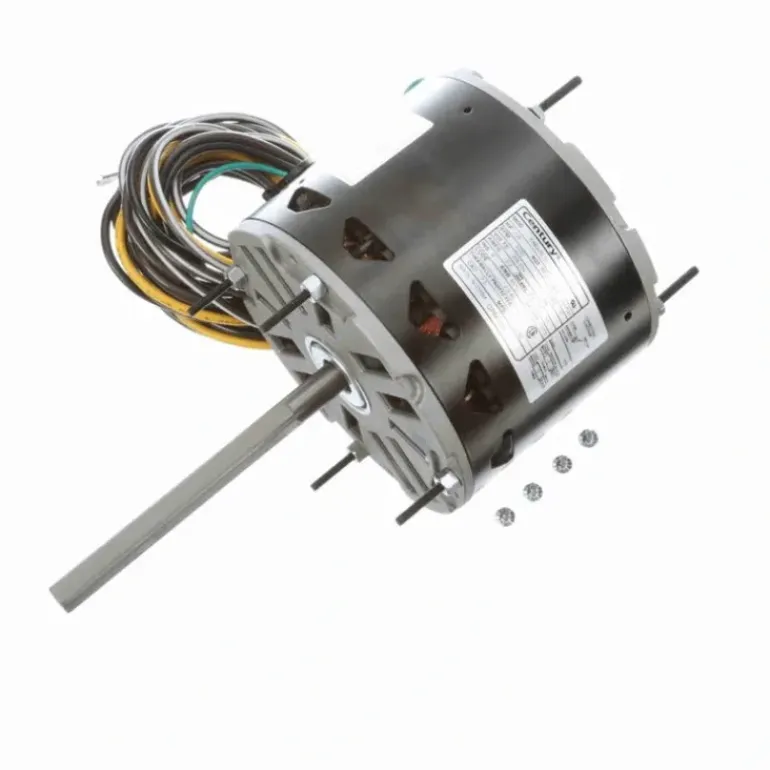

Century OEM Replacement Motor, 1/3 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, OAO – ORM1036 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – ORM1036

• OEM Direct Replacement Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 60°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Double Flat
• 48″ Power Leads with Female Spade Terminals, 72″ Capacitor Leads with Female Spade Terminals
• Extended Studs Shaft End and Lead End, Mounting Holes in Shell

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current2.2 A

Number of Speeds1

Ambient Temperature60 °C

ULRecognized

Insulation ClassB

CSAY

Weight14.00 LB

Country Of originChina

Output HP1/3 Hp

Output KW0.25 kW

Service Factor1

Frame48Y

EnclosureOpen Air Over

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationReversible

MountingExtended Studs

Motor OrientationVertical Shaft Down

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeDouble Flat

Frame Length3.75 in

Shaft Diameter0.500 in

Shaft Extension5.5 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
