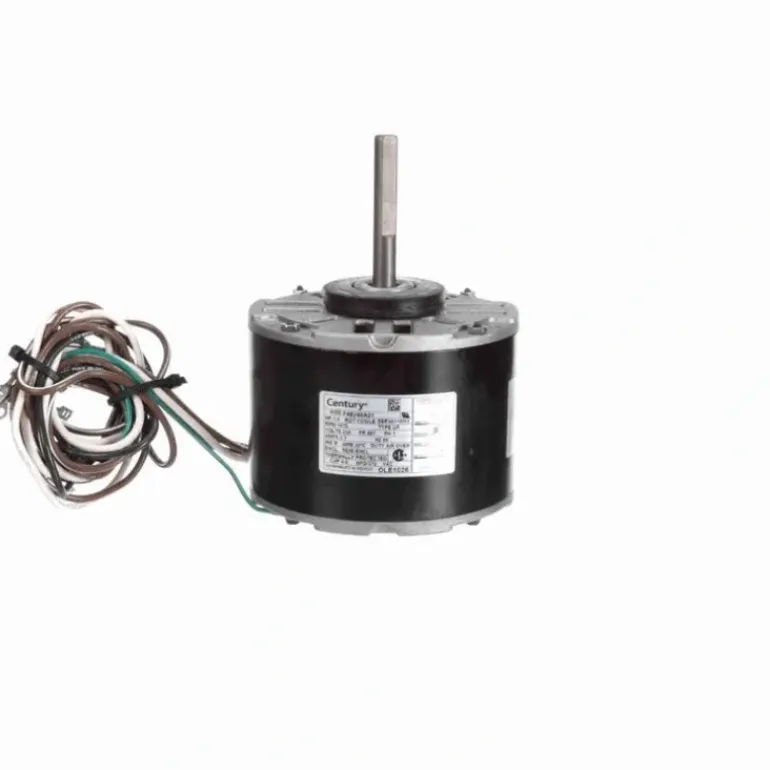

Century OEM Replacement Motor, 1/4 HP, 1 Ph, 60 Hz, 230 V, 1075 RPM, 1 Speed, 48 Frame, SEMI ENCLOSED – OLE1026 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – OLE1026

• OEM Direct Replacement Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Semi-Enclosed, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2″ Diameter Shaft with Double Flat
• 40″ Power Leads with #10 Eyelet
• Resilient Mounting Ring Shaft End and Lead End, Belly Band Mounting (Belly Band Not Included)

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current2.1 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight9.00 LB

Country Of originMexico

Output HP1/4 Hp

Output KW0.19 kW

Service Factor1

Frame48Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationCounterclockwise Lead End

MountingResilient Rings

Motor OrientationAny

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeDouble Flat

Frame Length3.38 in

Shaft Diameter0.500 in

Shaft Extension3.5 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
