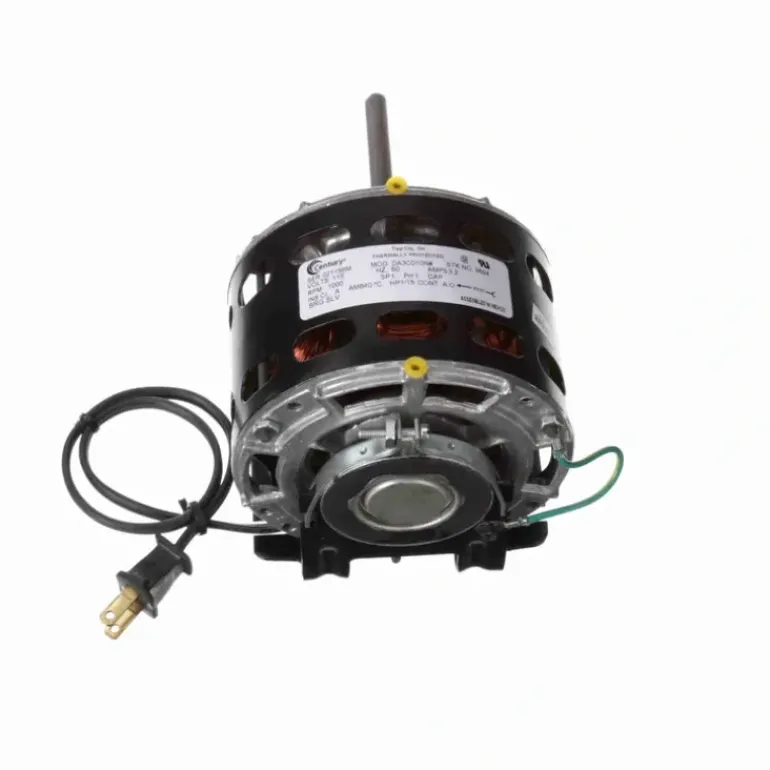

Century Ventilation Motor, 1/15 HP, 1 Ph, 60 Hz, 115 V, 1000 RPM, 1 Speed, 42 Frame, OAO – 9694 – One-stop shop for professional tools and equipment.
$45.99
Description
Product Description
Century – 9694
- Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
- 5″ Diameter – 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8″ Diameter Shaft with Flat
- 17.5″ Leads with Molded Plug
- Resilient Base
Additional Information
Thermal ProtectionAutomatic
Speed1000 rpm
Current3.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame42Y
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationCounterclockwise Lead End
MountingResilient Base
Motor OrientationHorizontal
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length2.92 in
Shaft Diameter0.375 in
Shaft Extension3.7 in
HTC8501.40.2040
CEN
Starting MethodAcross The Line
