Daikin 18,000 BTU Ceiling Cassette Daikin Mini-Split Multi Zone Vista – Air Handler – One-stop shop for professional tools and equipment.

Description

Product Description

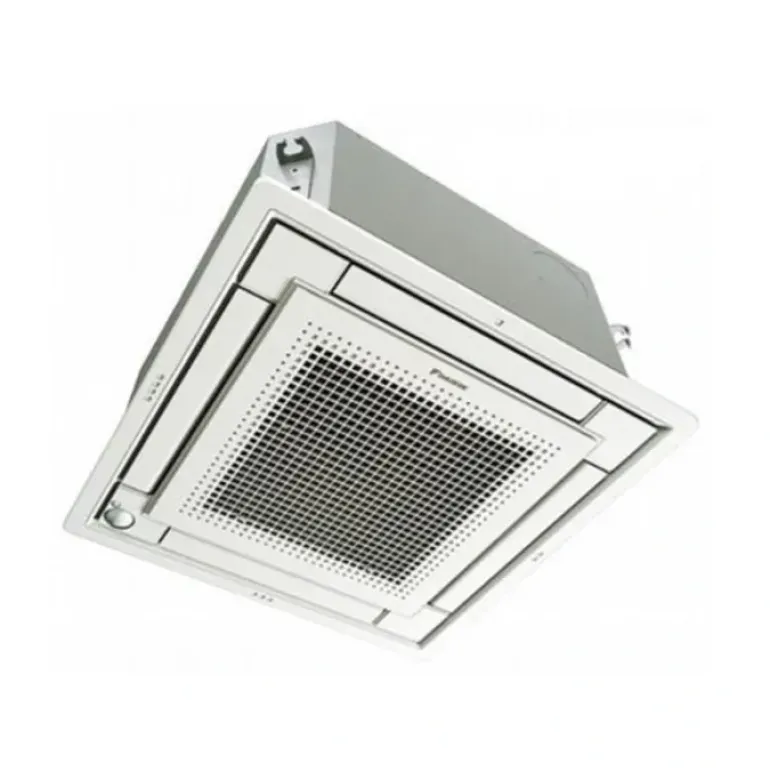

Daikin – FFQ18Q2VJUBYFQ60C2W1W The Daikin VISTA ceiling cassette blends design with the comfort you expect from Daikin systems. It fits within the ceiling grid and discreetly mounts into the ceiling itself, so it has a low profile. It boasts high efficiency and comfort. Additional comfort is provided by the unit’s draft prevention system and individual louver control, which keeps the air from blowing directly onto your body.

You can increase the efficiency by installing the optional floor and presence sensors, which adjust the temperature in a room based on whether the room is occupied or not. The sensor kit can save up to 20% in cooling and 30% in heating.

Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin’s beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

Features

• Draft Reduction This feature combines a large flap and small swing flap to direct the airflow in a room. In winter, it will send warm air to the floor, and in summer, it will send cool air across the room. This produces fine air currents that circulate the air around the room.
• Individual Louver Control You can control the delivery angle from horizontal (for cooling) or vertical (for heating). This keeps the air from blowing directly onto your body.
• Intelligent Eye An infrared sensor detects movement in the room. When the room is occupied, the unit will operate normally. If the room is vacant for more than 20 minutes, the unit automatically switches to an energy-saving mode.

Additional Information

MPNFFQ18Q2VJU / BYFQ60C2W1W

Weight (in lbs) 40.000000

Brand/Manufacturer Daikin

Additional Information Drain: 1-1/32″

Cooling BTU 18000

Heating BTU 18000

Maximum CFM 275-498 CFM

Decibel Level (dBA) 32-44

Refrigerant R410A

Liquid Line 1/4″

Suction Line 1/2″

Electrical 208/230v 1 Phase 60 Hz

BTU/Tonnage 18,000 BTU/1.5 Ton

Mini-Split Type Ceiling Cassette

Zone Compatibility Multi Zone

Height 10-1/4″

Width 22-5/8″

Depth 22-5/8″

Warranty 12 Years with Online Registration
