Description

Product Description

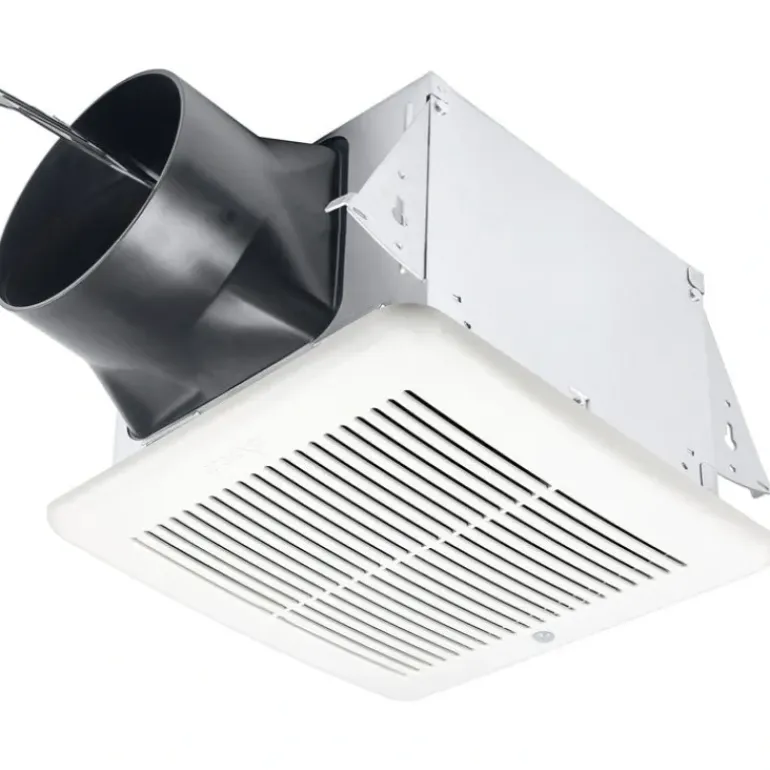

Delta Breez – ELT80-110MH Delta Breez ELT80-110MH – The Delta BreezElite ELT80-110MH, an ENERGY STAR® qualified fan with Motion and humidity sensor, is ideal for room-side installation. It features installer-friendly pocket mounting brackets, adjustable high-speed options, quiet and energy-efficient operation rated at 80 or 110 CFM, and exceeds Energy Star Most Efficient standards

Innovative brushless DC motor design for long life, low noise, and low power consumption

The ELT80-110MH has been awarded ENERGY STAR® qualification, featuring a Brushless DC Motor engineered to run continuously for a minimum of 70,000 hours. It boasts an airflow rating of 110 CFM and a loudness rating of 0.7 Sones at 0.1” static pressure, certified by the Home Ventilating Institute (HVI). The fan operates with a power consumption of 10.3 Watts and achieves an efficiency rating of 10.6 CFM/Watt at 0.1” static pressure. Additionally, it includes motor lock protection and self-compensating motor speed to maintain intended airflow when encountering static pressure. The ELT80-110MH is UL and cUL listed for use in tub/shower enclosures when connected to GFCI-protected branch circuit wiring.

Features

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• Perfectly quiet operation at 0.5 sones (80 CFM) and 0.7 sones (110 CFM) with a 6-inch duct
• Adjustable high speed 80 CFM or 110 CFM
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50 or 80 CFM)
• Adjustable humidity set points between ~50% to ~80% RH
• When Motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (10 minutes) has passed, then fan runs humidity control mode
• Includes 6″ to 4″ duct reducer
• Energy efficiency at 10.6 CFM/Watt
• The blue and amber LED indicator lights indicate the humidity sensor and full-speed modes are active
• Annual energy cost for 24/7 operation is approximately $7.36* (80 CFM) or $10.83* (110 CFM)

ELT80-110MH – 80/110 CFM Fan with Motion and Humidity Sensor (6″ Duct Standard)

Additional Information

Fan SpeedContinuous Low Speed, Full Speed

Static Pressure0.1, 0.25

Air Flow (CFM)50, 32, 80, 59, 80, 59, 110, 90

Sones0.3, 0.8, 0.5, 0.9, 0.5, 0.9, 0.7, 1

Power (W)5, 6, 7, 9, 7, 9, 10.3, 13

Efficiency (CFM/Watts)10, 5.3, 11.4, 6.5, 11.4, 6.5, 10.6, 6.9

Current (Amps)0.27 Max.

Power Rating (V/Hz)120/60

ELT80-110MH – 80/110 CFM Fan with Motion and Humidity Sensor (4″ Duct Standard)

Additional Information

Fan SpeedContinuous Low Speed, Full Speed

Static Pressure0.1, 0.25

Air Flow (CFM)50, 32, 80, 63, 80, 63, 110, 92

Sones0.5, 1, 0.8, 1.3, 0.8, 1.3, 1.2, 2

Power (W)5, 6, 8, 9.5, 8, 9.5, 12.5, 14

Efficiency (CFM/Watts)10, 5.3, 10, 6.6, 10, 6.6, 8.8, 6.5

Current (Amps)0.27 Max.

Power Rating (V/Hz)120/60
