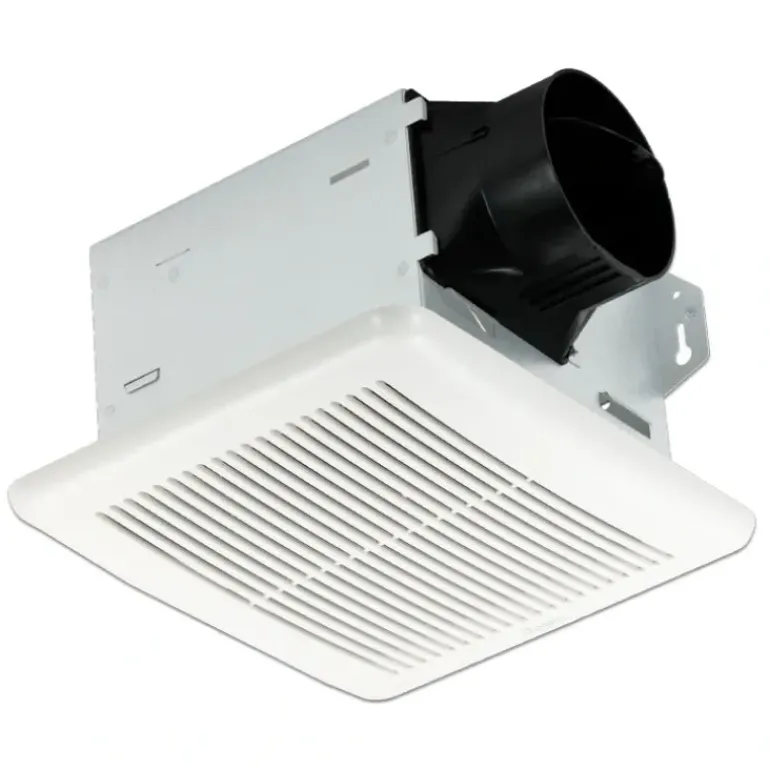

Delta Breez ITG100 BreezIntegrity 100 CFM Single Speed – One-stop shop for professional tools and equipment.

Description

Product Description

Delta Breez – ITG100 Delta Breez ITG100 – The Builder’s Choice for Green Construction.

ITG100 has been ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 100 CFM and loudness rating of 1.5 Sones at 0.1″ static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 17.0 Watts with efficiency rating of 7.6 CFM/Watts. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring. Available in contractor packs.

Features

• ENERGY STAR^® qualified with DC Motor technology
• Quiet operation at 1.5 Sones
• ITG100 is UL listed for both ceiling-mount and wall-mount installation
• Compact housing for easy retrofit and replacement of older bath fans
• UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
• Energy efficiency at 7.6 CFM/Watt
• Annual energy cost for 24/7 operation is approximately $17.88*

ITG100 – 100 CFM Fan

Additional Information

Static Pressure (inches w.g.)0.1, 0.25

Air Flow (CFM)100, 85

Sones1.5, 2

Power Consumption (Watts)17, 21

Energy Efficiency (CFM/Watts)7.6, 5.3

Current (Amps)0.33 Max

Power Rating (V/Hz)120/60

NoteProject Pack Components Available ITG-A2 (housing) and ITG100-B (motor grille)
