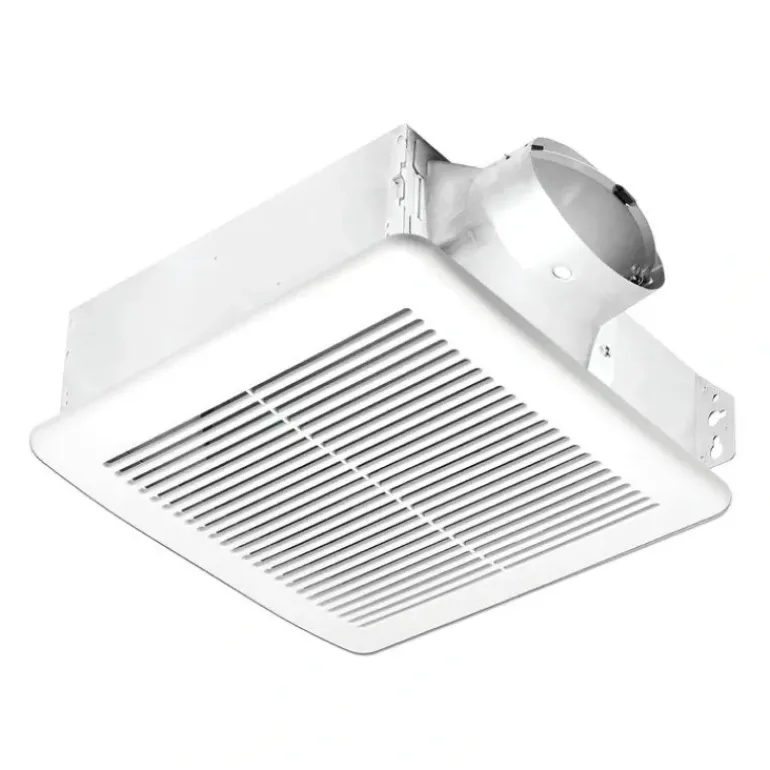

Delta Breez SLM50-110-C BreezSlim Ventilation Fans 50/80/110 CFM Exhaust Fan – High Speed Adjustable – One-stop shop for professional tools and equipment.

Description

Product Description

Delta Breez – SLM50-110-C Delta Breez SLM50-110-C – Super Low Profile. Super Low Energy Consumption.

Delta BreezSlim SLM50-110-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.2 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• UL approved for ceiling and wall mount installation. It can fit in a 4″ wall
• 4″ Oval Duct
• SLM50-110-C can fit with Ceiling Radiation Damper SMT-CRD2
• Full speed adjustable, 50CFM, 80CFM or 110CFM
• Perfectly quiet operation at 0.3 sones (50CFM), 0.4 sones (80CFM), 1.2 sones (110CFM)
• Energy efficiency at 8.3 CFM/Watt (50CFM), 9.4 CFM/Watt (80CFM), 6.6 CFM/Watt (110CFM)
• Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
• Annual energy cost for 24/7 operation is approximately $6.31* (50CFM), $8.94* (80CFM), $17.35* (110CFM)

SLM50-110-C – 50/80/110 CFM Exhaust Fan

Additional Information

Fan SpeedFull Speed

Static Pressure (inches w.g.)0.1, 0.25, 0.1, 0.25, 0.1, 0.25

Air Flow (CFM)50, 50, 80, 80, 110, 110

Sones0.3, 0.8, 0.4, 1, 1.2, 1.5

Power Consumption (Watts)6, 9.5, 8.5, 14.5, 16.5, 24

Energy Efficiency (CFM/Watts)8.3, 5.2, 9.4, 5.5, 6.6, 4.5

Current (Amps)0.6 Max

Power Rating (V/Hz)120/60
