Description

Product Description

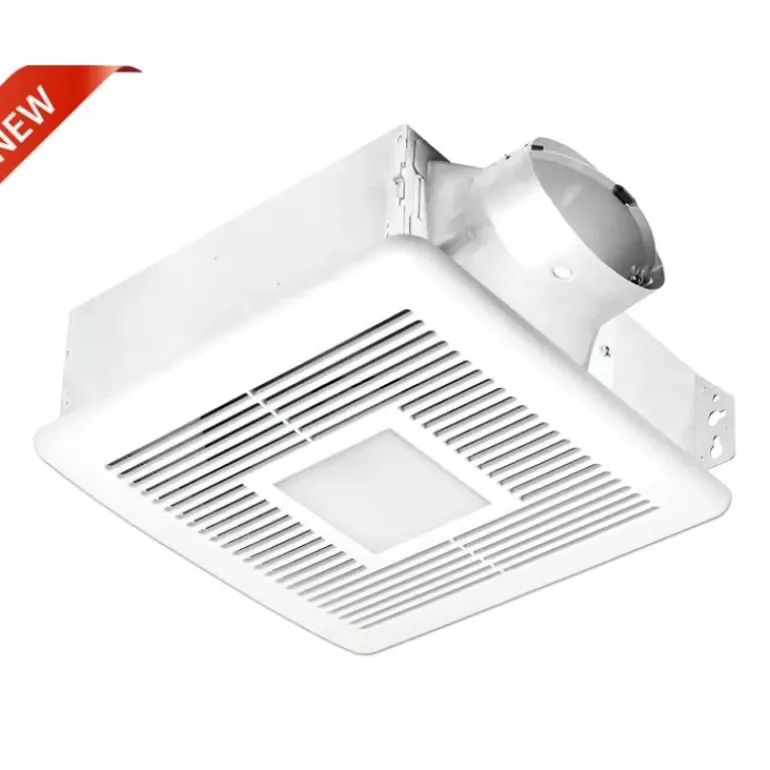

Delta Breez – SLM80-110DLED-C Delta Breez SLM80-110DLED-C – Super Low Profile. Super Low Energy Consumption.

Delta BreezSlim SLM80-110DLED-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.3 sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• UL approved for ceiling or wall mount installation, and it can fit in a 4″ wall
• 4″ Oval Duct
• SLM80-110DLED-C can fit with Ceiling Radiation Damper SMT-CRD2
• Perfectly quiet operation at 0.4 sones (80 CFM), 1.3 sones (110 CFM)
• Adjustable full speed 80 CFM or 110 CFM
• Allows fan to operate in full speed mode or continuous low speed mode by manual switch
• Energy efficiency at 8.8 CFM/Watt (80 CFM), 6.6 CFM/Watt (110 CFM)
• For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 50, 80 CFM)
• Delay time preset positions (0.5, 5, 15, 30, 45, or 60 min)
• 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
• Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
• Green and amber LED indicator lights show continuous low speed and full speed modes
• Annual energy cost for 24/7 operation is approximately $8.94* (80 CFM) or $17.35* (110 CFM)

SLM80-110DLED-C – 80/110 CFM Fan/Dimmable LED Light with Dual Speed

Additional Information

Fan SpeedContinuous Low Speed, Full Speed

Static Pressure (inches w.g.)0.1, 0.25, 0.1, 0.25, 0.1, 0.25, 0.1, 0.25

Air Flow (CFM)50, 47, 80, 80, 80, 80, 110, 106

Sones0.3, 0.8, 0.4, 1.1, 0.4, 1.1, 1.3, 1.5

Power (W)6, 9.5, 9, 14.5, 9, 14.5, 16.5, 24

Efficiency (CFM/Watts)8.3, 4.9, 8.8, 5.5, 8.8, 5.5, 6.6, 4.4

Current (Amps)0.6 Max.

Power Rating (V/Hz)120/60

Dimmable LED Light (Watts)13
