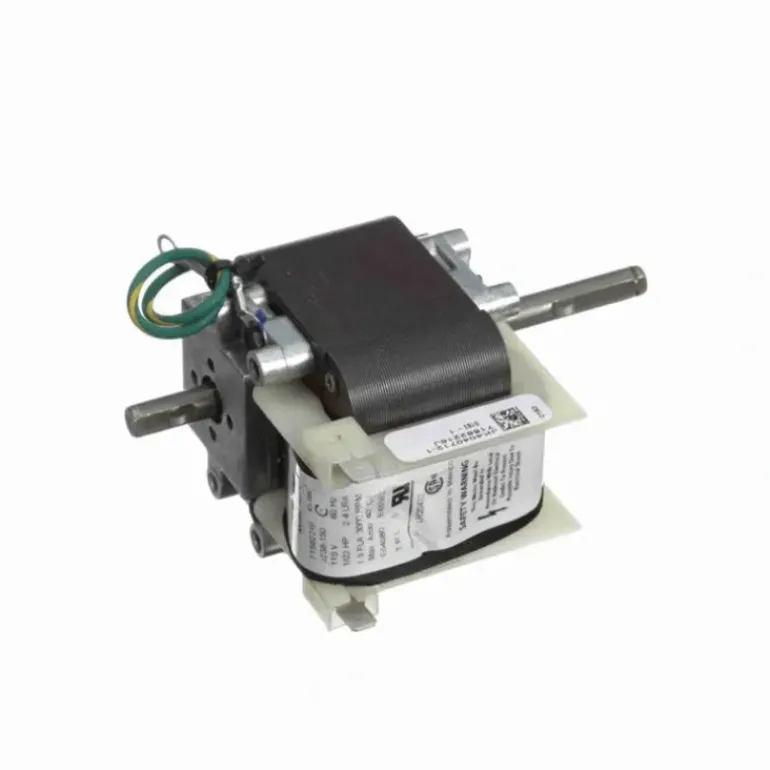

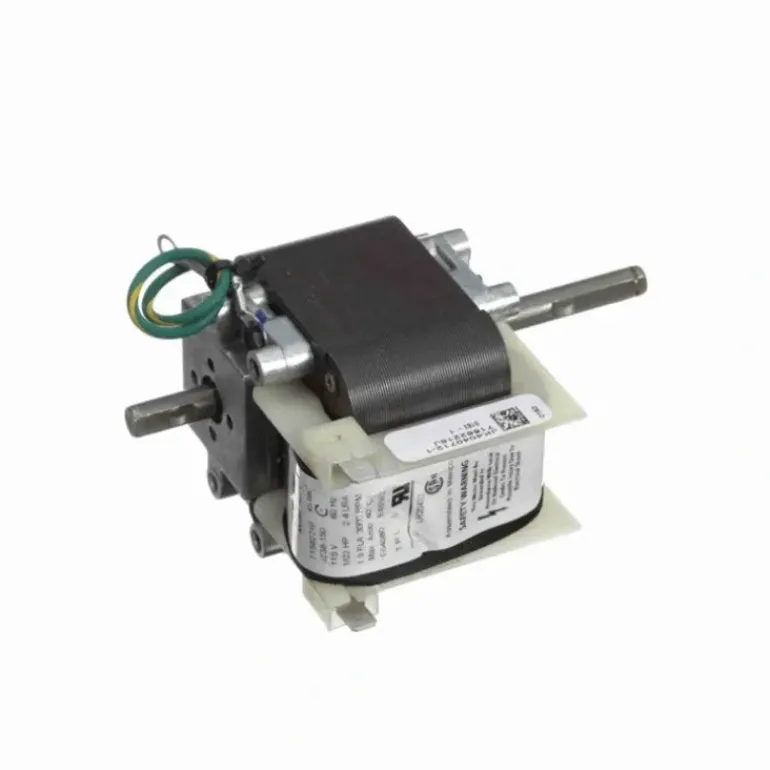

Fasco 1/22 HP C-Frame / Skeleton Motor, 3000 RPM, 115 Volts, , OAO – K674 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – K674

• Refrigeration Motor
• C-Frame
• Shaded Pole
• Thermally Protected, One-Shot Fuse
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• .3116″ Diameter Double Shaft with Flat
• Power Quick Connect Terminal
• (2) Tapped Screw Holes

Additional Information

Thermal ProtectionThermally Protected

Speed3000 rpm

Current1.9 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight3.05 LB

Country Of originMexico

Output HP1/22 Hp

Output KW0.04 kW

Service Factor1

FrameC-FRAME

EnclosureOpen Enclosed

DutyAir Over

Electrical TypeShaded Pole

Poles2

RotationClockwise

MountingExtended Studs

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialNa

Shaft TypeFlat Groove

Shaft Diameter0.311 in

Shaft Extension1.90 in

CEN

Starting MethodAcross The Line
