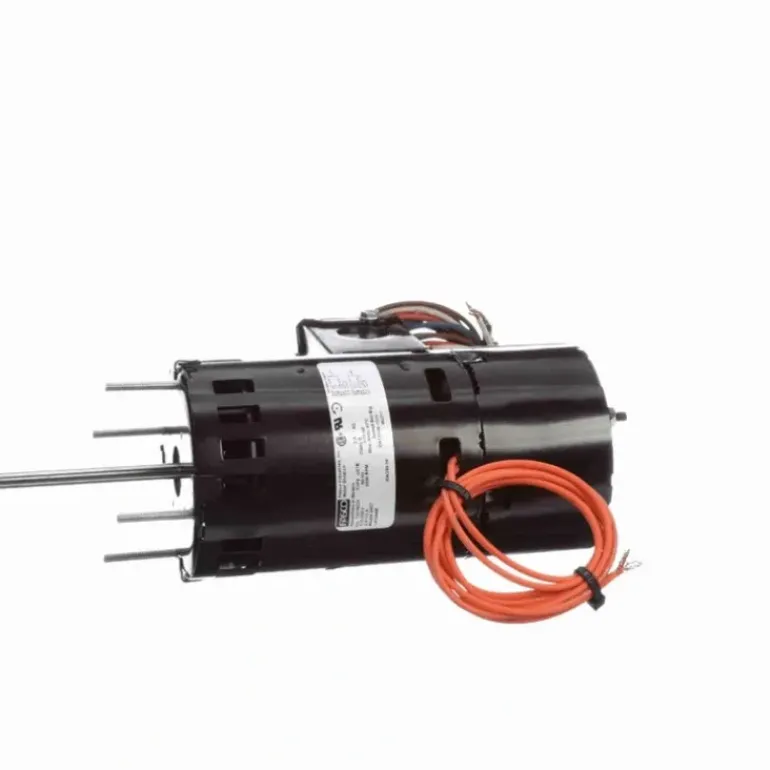

Fasco OEM Replacement Motor, 1/15 HP, 1 Ph, 60 Hz, 115/230 V, 3000 RPM, 1 Speed, 3.3& Diameter, OAO – D457 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – D457

• OEM Direct Replacement Motor
• 3.3″ Diameter
• Shaded Pole
• Thermally Protected
• Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/4″ Diameter Shaft with Flat
• Conduit Box, 32″ Power Leads, 32″ Switch Leads
• Extended Studs Shaft End

Additional Information

Thermal ProtectionThermally Protected

Speed3000 rpm

Current2.0/1.0 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight4.80 LB

Country Of originMexico

Output HP1/15 Hp

Output KW0.05 kW

Frame3.3

EnclosureOpen Air Over

DutyAir Over

Electrical TypeShaded Pole

Poles2

RotationCounterclockwise Shaft End

MountingExtended Studs

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialSteel

Shaft TypeFlat

Frame Length4.24 in

Shaft Diameter0.250 in

Shaft Extension2.75 in

CEN

Starting MethodAcross The Line

Efficiency30 %
