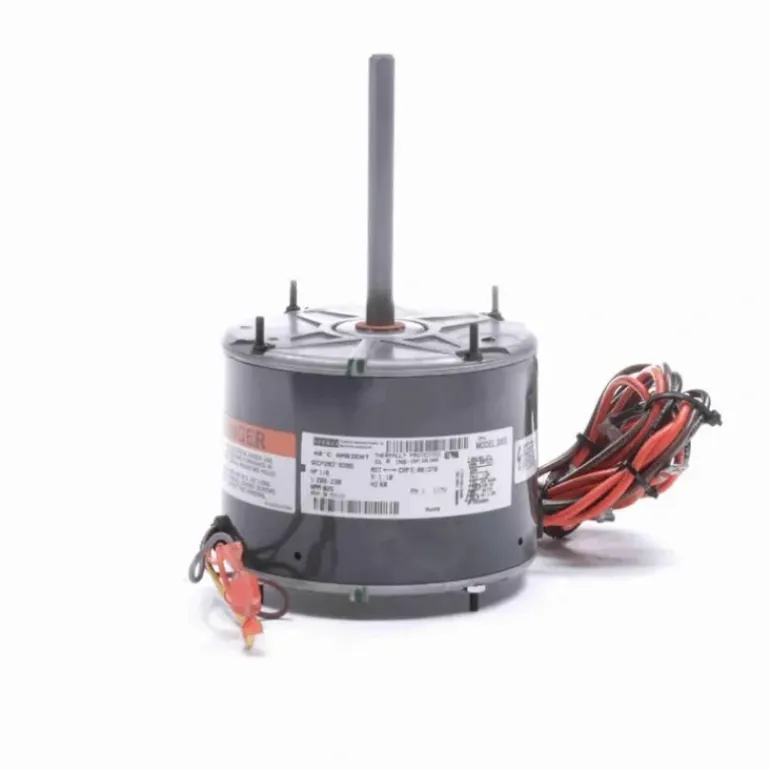

Fasco OEM Replacement Motor, 1/8 HP, 1 Ph, 60 Hz, 208-230 V, 825 RPM, 1 Speed, 48 Frame, TEAO – D832 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – D832

• OEM Direct Replacement Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Shaft with Double Flat
• 37″ Power Leads, 40″ Capacitor Leads
• Extended Studs, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionThermally Protected

Speed825 rpm

Current1.10 A

Number of Speeds1

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight10.00 LB

Country Of originMexico

Output HP1/8 Hp

Output KW0.10 kW

Service Factor1

Frame48

EnclosureTotally Enclosed Air Over

DutyContinuous Air Over

Electrical TypePermanent Split Capacitor

Poles8

RotationCounterclockwise/Clockwise

MountingExtended Studs

Motor OrientationAny

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeDouble Flat

Frame Length3.57 in

Shaft Diameter0.500 in

Shaft Extension4.75 in

CEN
