Description

Product Description

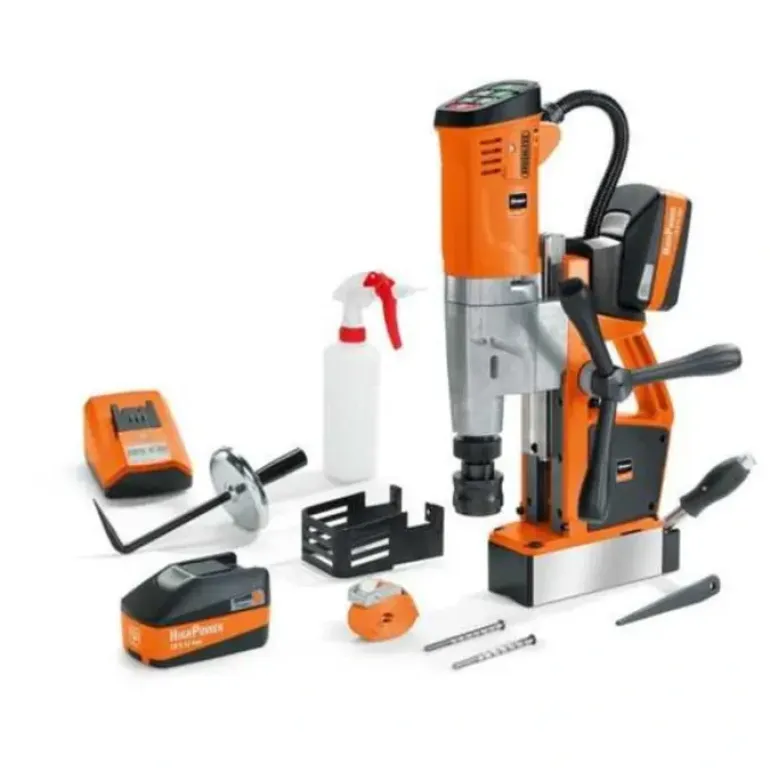

Fein – 71700261090

• Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
• Small and lightweight tool for persistently high long-term work progress thanks to brushless FEIN PowerDrive motor with tacho electronics and FEIN HighPower battery with high-current-capable cells.
• Flexibility in all mobile drilling operations, such as mag base drilling, spiral drilling, tapping, sinking and reaming.
• FEIN HighPower Li-ion battery. Continuously high current output with 75% higher amperage than Li-ion batteries for high cutting speed.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• Motion sensor.
• Reversible.
• Electronic speed control.
• Extra long stroke.
• MT2 tool mounting.
• Extra narrow permanent magnet with magnetic bias.
• “Memory function” speed storage.
• The battery capacity can be read directly on the battery.
• FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.
• optional using accessory.
• Highest performance with FEIN HighPower Li-ion battery.

Additional Information

Battery voltage18 V

Battery compatibilityLi-ion / HighPower Li-ions**

Battery interface18 V

Weight without battery26.68 [12.10] lbs[kg]

Battery capacity5.2 Ah

Full load speed130 – 520 rpm

Weight incl. battery28.22 [12.80] lbs[kg]

Sound pressure level LpA82,4 dB

Sound power level LWA93,4 dB

Peak sound value LpCpeak97,1 dB

Vibration value 1 ahv 3-wayah,D 0,6 m/s²

Motorbrushless

Tool mountMT 2

TappingM 14

Carbide cutter max. dia.1-3/8 [35] in[mm]

HSS cutter max. dia.1-3/8 [35] in[mm]

Cutter max. drilling depth2 [50] (3 [75] )* in[mm]

Twist drill max. dia.3/4 [18] in[mm]

Max. countersinking dia.1-1/4 [31] in[mm]

Reaming max. dia.3/4 [18] in[mm]

Cutter holder3/4″ Weldon

Cutter changetool-free

Stroke5-5/16 [135] in[mm]

Total stroke range10-1/4 [260] in[mm]

Magnetic holding force2023 [9,000] lbs[N]

Magnetic base dimensions7-11/16 [195] x 2-3/4 [70] in[mm]
