Fein 72706961090 Magnetic Core Drill_Jme Usa 202M – One-stop shop for professional tools and equipment.

Description

Product Description

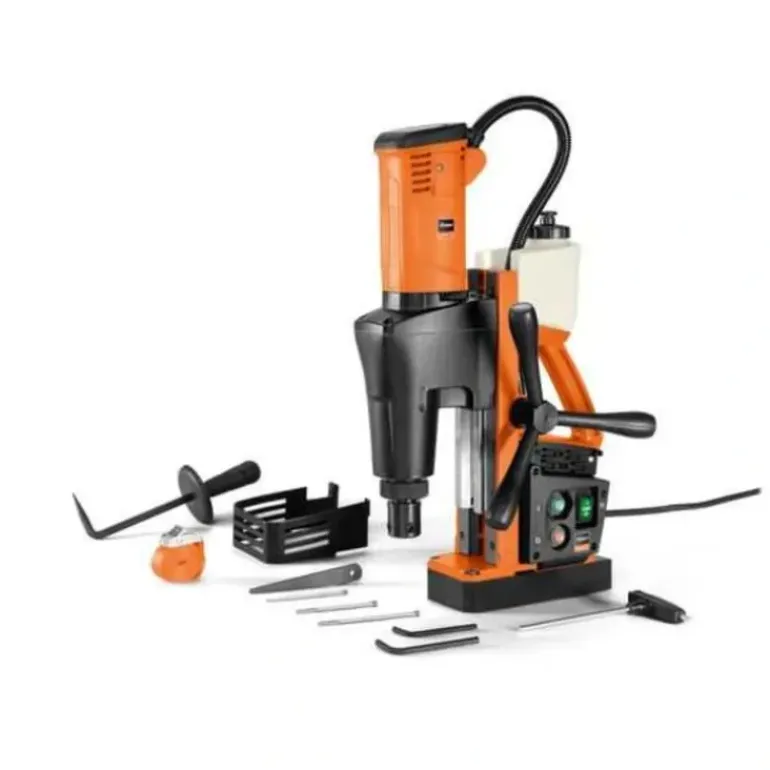

Fein – 72706961090

• For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.
• Slugger by FEIN high-performance motor with high torque for use with carbide and HSS core drills and extra-large stroke range for twist drilling.
• Uncompromising service life and work progress for an excellent price/performance ratio.
• Mechanical 2-speed gearbox.
• Higher RPM for optimal use with carbide cutters.
• MT3 tool mounting.
• High magnetic holding force.
• Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.
• Optimum power-to-weight ratio.
• Integrated coolant tank.
• Hand feed wheel can be mounted either side.
• Integrated hexagon socket holder.
• optional using accessory.

Additional Information

Weight30.86 [14.00] lbs[kg]

Power consumption1,280 W

No load speed350 / 680 rpm

Full load speed260 / 520 rpm

Tool mountMT 3

Carbide cutter max. dia.2 [50] in[mm]

HSS cutter max. dia.2 [50] in[mm]

Cutter max. drilling depth2 [50] (3 [75] *) in[mm]

Twist drill max. dia.7/8 [23] in[mm]

Cutter holder3/4″ Weldon

Stroke5-5/16 [135] in[mm]

Total stroke range10-1/4 [260] in[mm]

Magnetic holding force2810 [12,500] lbs[N]

Magnetic base dimensions7-11/16 [195] x 3-9/16 [90] in[mm]

Power output616 W

Cable with plug9.8 [3] ft[m]
