Description

Product Description

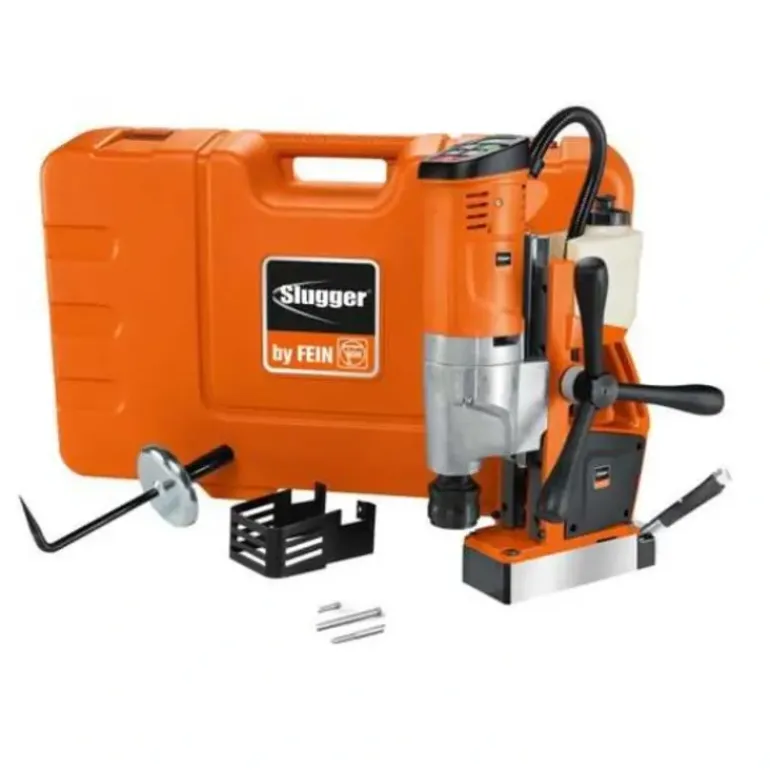

Fein – 72707361090

• Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
• Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
• Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
• Extra narrow permanent magnet with magnetic bias.
• Motion sensor.
• Simple and error-proof control concept in the operator’s field of view.
• Convenient magnetic holding force display.
• Reversible.
• Integrated coolant tank.
• “Memory function” speed storage.
• Hand feed wheel can be mounted on either side.

Additional Information

Weight27.56 [12.50] lbs[kg]

Power consumption1,010 W

Full load speed130 – 520 rpm

Sound pressure level LpA86,7 dB

Sound power level LWA97,7 dB

Peak sound value LpCpeak101,2 dB

Vibration value 1 ahv 3-way2,5 m/s²

TappingM 14

Carbide cutter max. dia.1-3/8 [35] in[mm]

HSS cutter max. dia.1-3/8 [35] in[mm]

Cutter max. drilling depth2 [50] in[mm]

Twist drill max. dia.5/8 [16] in[mm]

Max. countersinking dia.1-1/4 [31] in[mm]

Reaming max. dia.5/8 [16] in[mm]

Cutter holder3/4″ Weldon

Cutter changetool-free

Stroke5-5/16 [135] in[mm]

Total stroke range10-1/4 [260] in[mm]

Magnetic holding force2023 [9,000] lbs[N]

Magnetic base dimensions7-11/16 [195] x 2-3/4 [70] in[mm]

Power output550 W

Cable with plug13.1 [4] ft[m]
