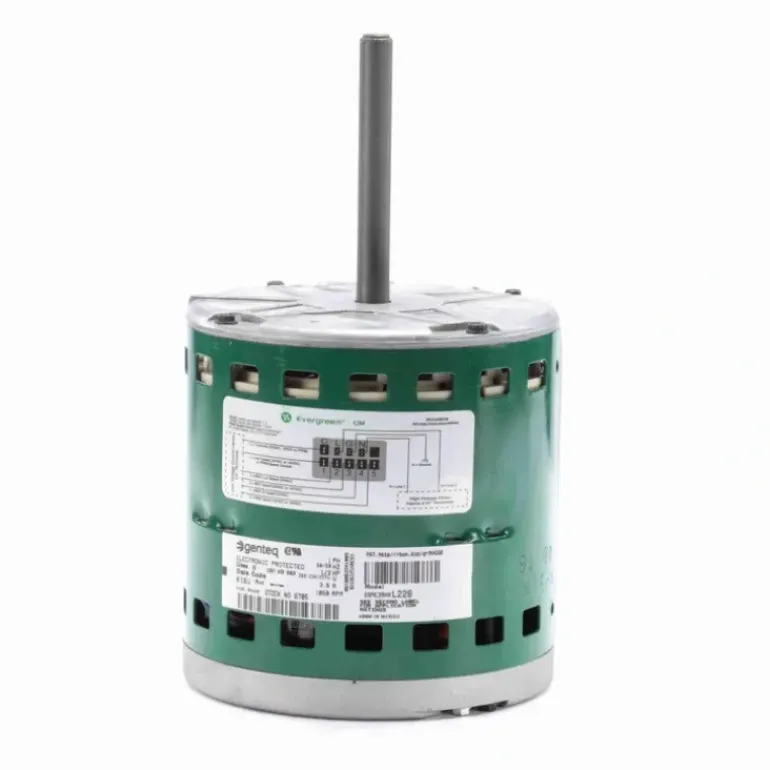

Genteq EVERGREEN® CM Fan and Blower Motor, 3/4 HP, 1 Ph, 60 Hz, 460 V, 1075 RPM, 5 Speed, 48 Frame, OAO – 6407 – One-stop shop for professional tools and equipment.

Description

Product Description

Century – 6407

• Evergreen CM – ECM Replacment Commercial Air Handler Motor
• 5.6″ Diameter – 48 Frame
• Electronically Commutated (ECM), Electronically Protected
• Up to five constant torque settings controlled by 24 VAC inputs
• Fully variable (PWM compatible) from 600-1100 RPM
• Open Air Over, Class B Insulation, 55°C Ambient
• Ball Bearing
• 1/2″ Diameter Shaft with Flat
• 42″ Leads
• Belly Band Mount (Belly Band Not Included)

Additional Information

Thermal ProtectionNo Protection

Speed1075 rpm

Current3.1 A

Number of Speeds5

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAN

Weight13.22 LB

Country Of originMexico

Output HP3/4 Hp

Output KW0.56 kW

Service Factor1

Frame48

EnclosureOpen Air Over

DutyContinuous Air Over

Electrical TypeElectronically Commutated Motor

Poles12

RotationReversible

MountingRound

Motor OrientationVertical Shaft Down

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length5.57 in

Shaft Diameter0.500 in

Shaft Extension3.92 in

CEN
