Goodman ASX140241 Amana Split Air Conditioner (2 tons) – One-stop shop for professional tools and equipment.

Description

Product Description

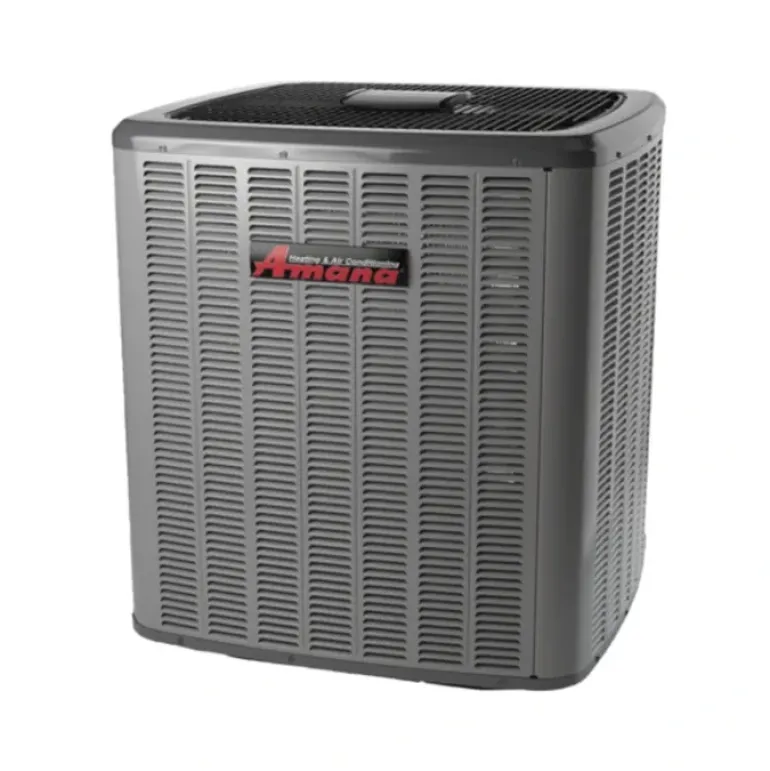

Goodman – ASX140241 Amana ASX14 Split Air Conditioner 14 SEER, Single Stage, 2 Ton,

Specification :

• 1. High-efficiency compressor
• 2. Single-speed PSC condenser fan motor
• 3. Factory-installed filter drier
• 4. Factory-installed high and low-pressure switches
• 5. High-density foam compressor sound blanket
• 6. Fully charged for fifteen feet of tubing length
• 7. Contactor with lug connection
• 8. AHRI Certified – ETL Listed
• 9. Ground lug connection
• 10. Copper tube enhanced aluminum fin coil

Cabinet Features :

• 1. Heavy-gauge galvanized steel cabinet and louvered coil guards
• 2. Service valves with sweat connections and easy-access gauge ports
• 3. Engineered sound control top design
• 4. Wire fan discharge grille
• 5. Baked-on powder-paint finish with 500-hour salt-spray approval
• 6. Single-panel access to controls with space for field-installed accessories
• 7. Service port and controls are accessible while unit is operating
• 8. Compact footprint
• 9. Rust-resistant screws
• 10. When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Manufacturer Part NumberASX140241

Compressor StagesSingle Stage

Compressor TypeScroll

Unit Depth26-1/4 in

Unit Height32-1/2 in

Unit Width26-1/4 in

Efficiency14 SEER

Family DescriptionEnergy-Efficient Split System Air Conditioner Up to 15 SEER 12.5 EER

Max. Voltage253 V

Min. Circuit17.6 A

Min. Voltage197 V

Model Efficiency14 SEER

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage208/230 V

FamilyASX14

Prop65 Label RequiredTRUE

RefrigerantR-410A

Tonnage2 tons

Unit TypeOutdoor

Liquid Valve Outside Diameter3/8 in

Suction Valve Outside Diameter3/4 in

Unit Weight142 lb

Motor Speed TypeSingle Speed
