Description

Product Description

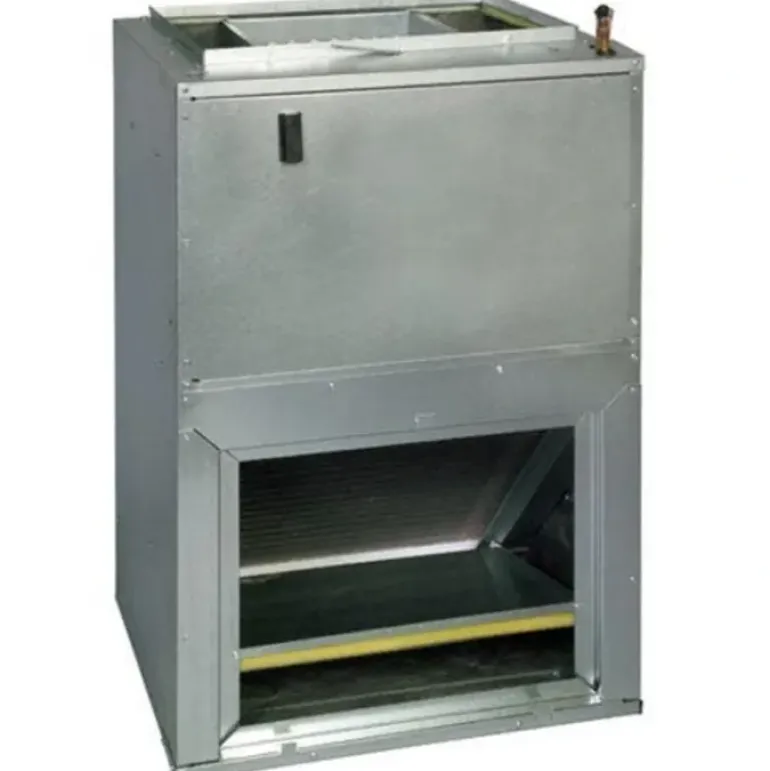

Goodman – AWST30LU1405

The Goodman AWST Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

• Suitable for use with refrigerants R-410A
• Equipped with a fully adjustable TXV for cooling-only and heat pump operation
• Direct-drive, multi-speed motor allows air volume variation for heating and cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Factory-installed pull-type disconnect
• Aluminum tube coils on all models
• AHRI Certified
• ETL Listed
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2 ½- and 3-ton units) “ front return only
• Small chassis (1 ½- and 2-ton units) “ front or bottom return
• Wall-hanging bracket provided

Additional Information

SKU AWST30LU1405

Weight (in lbs) 109.000000

Brand/Manufacturer Goodman

Additional Information 18″ x 20″ x 1″ Large Chassis Filter

Cooling BTU 30,000 BTU

Blower Motor Multi Speed Direct Drive Motor

Maximum CFM 1168

Horsepower 0.5

Electric Heat 5 Kilowatts

Refrigerant R410A

Liquid Line 3/8″

Suction Line 3/4″

Electrical 208-230 V Single Phase 60 Hz

Max Breaker Size 30/30 Amps

Min. Breaker Size 26/29.8 Amps

Tonnage 2.5 Ton

Fuel Type Electric

Height 36″

Width 24″

Depth 21″

Warranty 10 Years Parts with Online Registration
