Goodman AWUF251016 2 Ton Wall Mounted Air Handler w/ 10kW Heat – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – AWUF251016

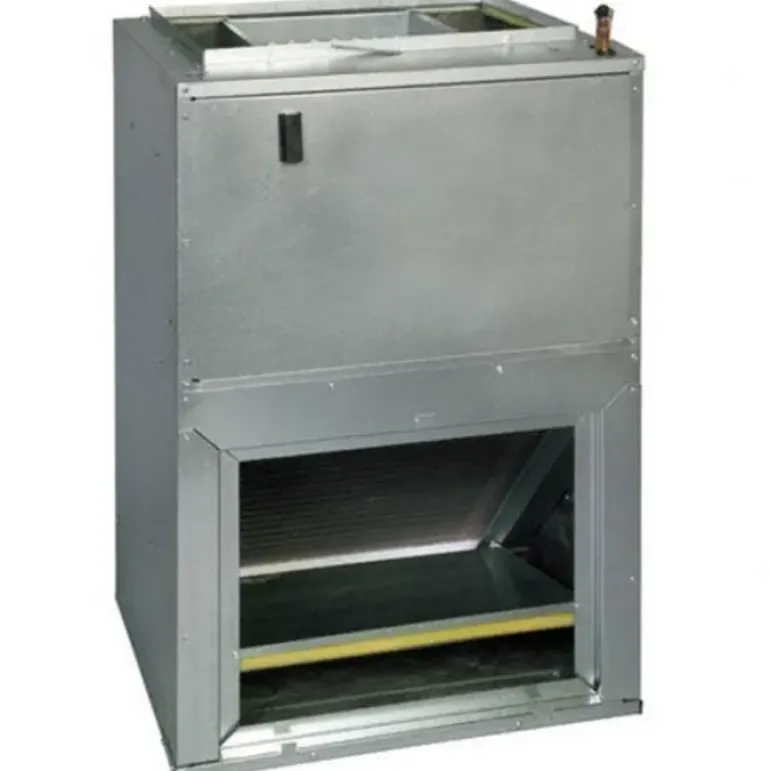

The Goodman AWUF Air Conditioner Air Handler is designed to be vertically wall or stud mounted. This Air Conditioner Air Handler is housed in a fully insulated, galvanized-steel cabinet. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

• Suitable for use with refrigerants R-410A and R-22
• Equipped with a check flowrater for cooling-only and heat pump operation
• Direct-drive, multi-speed motor allows air volume variation for heating and cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Factory-installed pull-type disconnect
• Aluminum tube coils on all models
• AHRI Certified
• ETL Listed
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2 ½- and 3-ton units) “ front return only
• Small chassis (1 ½- and 2-ton units) “ front or bottom return
• Wall-hanging bracket provided

Additional Information

SKU AWUF251016

Weight (in lbs) 84.000000

Brand/Manufacturer Goodman

Cooling BTU 24,000 BTU

Blower Motor Multi Speed – PSC

Maximum CFM 900

Electric Heat 10 Kilowatts

Electric Backup Heat Capabilities (Optional) 10 Kilowatts

Refrigerant R410A or R22

Filter Size 14″ x 18″

Liquid Line 3/8″

Suction Line 5/8″

Electrical 208-240 1 Phase

Max Breaker Size 50 amps

Tonnage 2 Ton

Fuel Type Electric

Height 36″

Width 20.25″

Depth 17″

Warranty 10 Years with Online Registration
