Goodman CAPT3743D4 3 to 3.5 Ton 24.5& Width Cased Evaporator Coil with TXV – One-stop shop for professional tools and equipment.

Description

Product Description

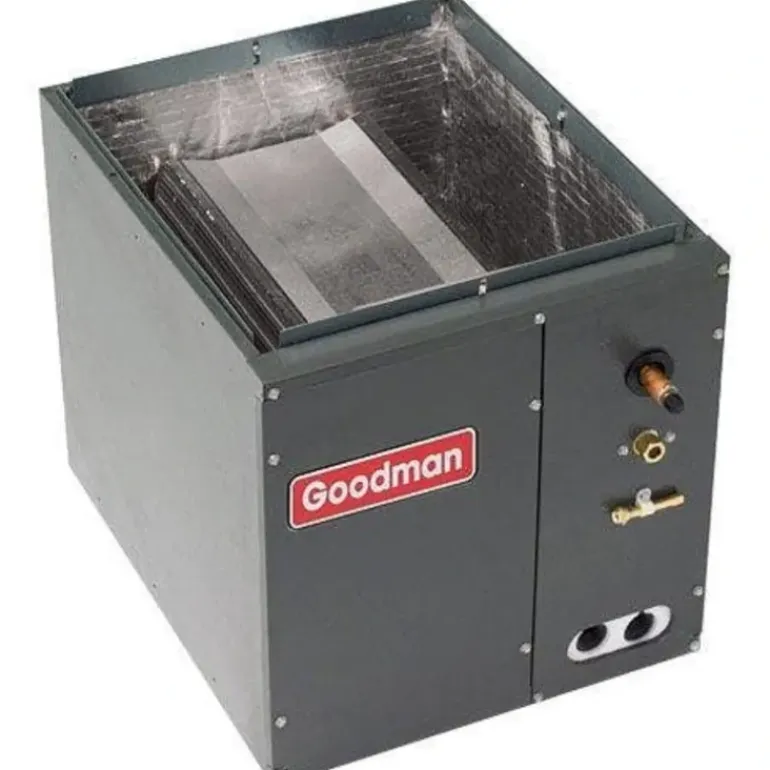

Goodman – CAPT3743D4

The Goodman CAPT3743D4 evaporator coil is ready for any vertical installation that you need it for. With a built-in TXV kit for efficiency, the CAPT3743D4 lives up to Goodman™s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

QUICK FACTS

• 3 to 3.5 ton vertical evaporator coil
• Installable in the upflow or downflow configuration
• Usable with either a heat pump or an AC-only condenser
• Low air leakage
• Factory-installed TXV

3 to 3.5 Tons

At an output of 3 to 3.5 tons, the Goodman CAPT3743D4 evaporator coil is ready for almost any vertical application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser™s tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit™s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CAPT3743D4 coil is covered under Goodman™s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPT3743D4 vertical evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil™s durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CAPT3743D4 vertical evaporator coil™s built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CAPT3743D4 to live up to the Goodman quality name.

Additional Information

SKU CAPT3743D4

Weight (in lbs) 75.000000

Brand/Manufacturer Goodman

Configuration Upflow / Downflow

Liquid Line 3/8″

Suction Line 7/8″

Tonnage 3 Ton to 3.5 Ton

Style A-Coil

Height 30″

Width 24.5″

Depth 21″

Warranty 10 Years with Online Registration
