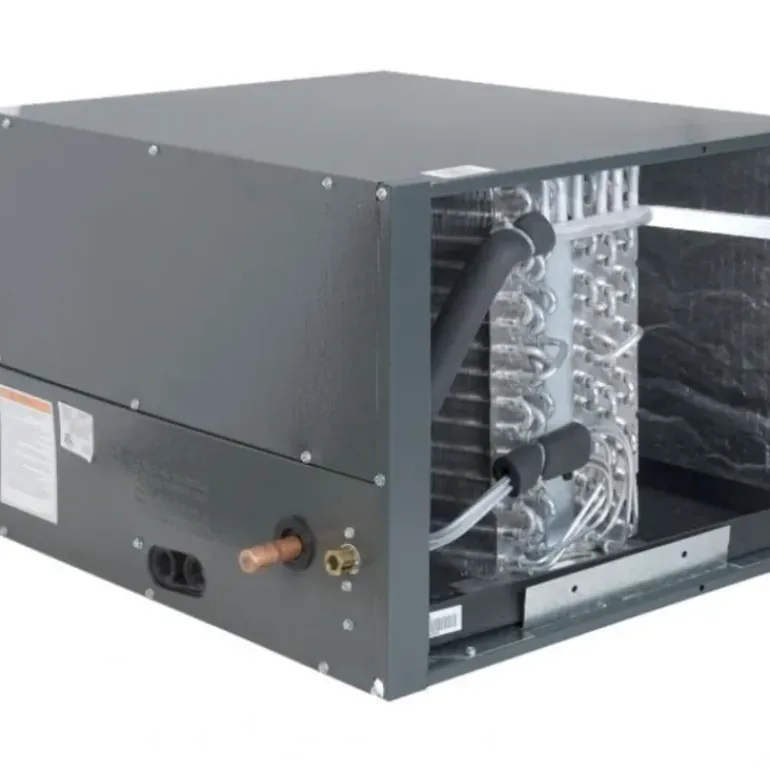

Goodman CHPF1824A6 1.5 to 2 Ton 14& Horizontal Evaporator Cased Coil – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – CHPF1824A6

The Goodman CHPF1824A6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF1824A6 is an inexpensive yet quality choice for you.

QUICK FACTS

• 1.5 to 2 ton evaporator coil
• Installable in the horizontal configuration
• Usable with either a heat pump or an AC-only condenser
• Works with R410A or R22 refrigerant
• Low air leakage
• Check flowrater expansion device for use in any application

1.5 to 2 Tons

At an output of 1.5 to 2 tons, the Goodman CHPF1824A6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit™s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF1824A6 coil is covered under Goodman™s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF1824A6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit™s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Additional Information

SKU CHPF1824A6

Weight (in lbs) 36.000000

Brand/Manufacturer Goodman

Configuration Horizontal

Refrigerant R410A or R22

Liquid Line 3/8″

Suction Line 3/4″

Tonnage 2 Ton

Style A-Coil

Height 14″

Width 21.125″

Depth 26″

Warranty 10 Years with Online Registration
