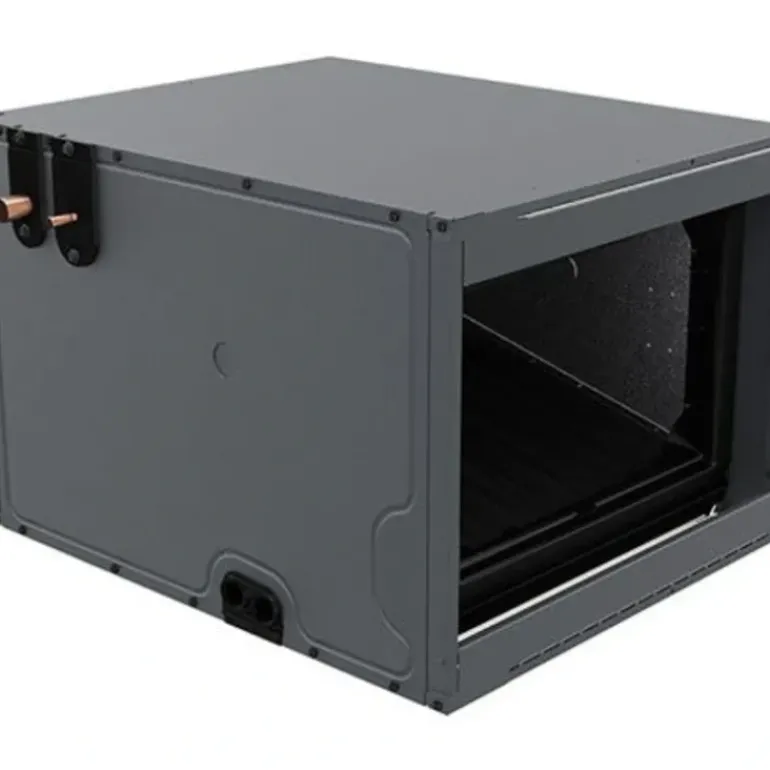

Goodman CHPTA2426B4 2 Ton 17.5& Height Horizontal Evaporator Coil – Cased – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – CHPTA2426B4

The Goodman CHPTA2426B4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA2426B4 lives up to Goodman’s expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

• 2 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit

2 Tons

At an output of 2 tons, the Goodman CHPTA2426B4 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser’s tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit’s efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPTA2426B4 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPTA2426B4 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil’s durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPTA2426B4 horizontal evaporator coil’s built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPTA2426B4 to live up to the Goodman quality name.

Additional Information

SKU CHPTA2426B4

Weight (in lbs) 57.000000

Brand/Manufacturer Goodman

Configuration Horizontal

Refrigerant R410A

Liquid Line 3/8″

Suction Line 7/8″

Tonnage 2 Ton

Style A-Coil

Certification ETL Listed

Height 17.5″

Width 26″

Depth 21″

Warranty 10 Years Parts with Online Registration
