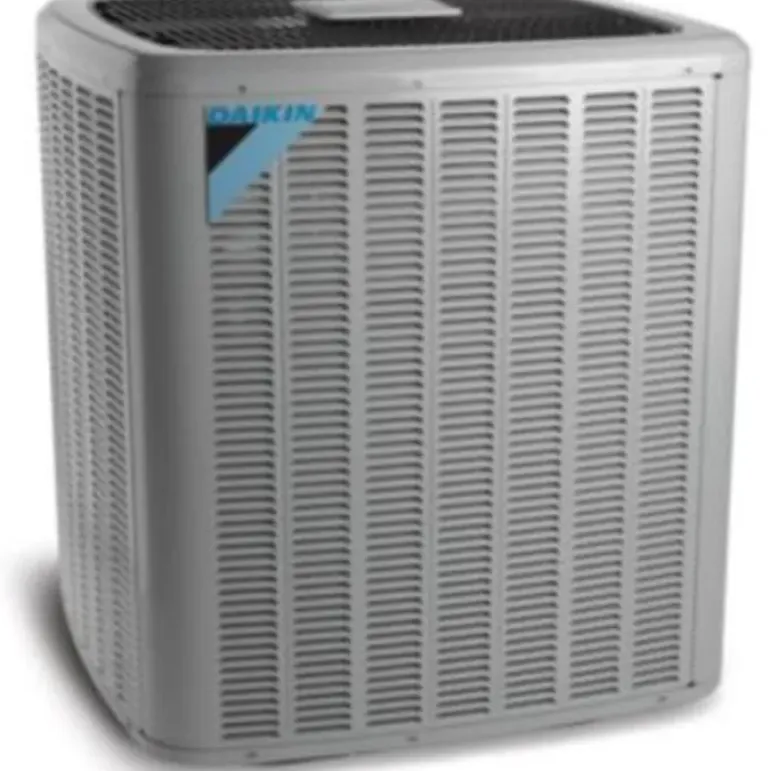

Goodman DX13SA0483 Daikin Light Commercial Split Air Conditioner (4 tons / 46000 Btu) – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – DX13SA0483 Daikin DX13 Light Commercial Split Air Conditioner 13 SEER, Single Stage, 4 Ton, Three-Phase

Specification :

• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/ enhanced aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
• AHRI Certified
• ETL Listed

Cabinet Features :

• * Innovative louvered sound control top design
• * Steel louver coil guard
• * Heavy-gauge galvanized-steel cabinet
• * Attractive Nickel Gray powder-paint finish
• * Top and side maintenance access
• * Single-panel access to controls with space provided for field-installed accessories
• * When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Additional Information

Manufacturer Part NumberDX13SA0483

Compressor StagesSingle Stage

Compressor TypeScroll

Cooling Capacity Rated46000 Btu/H

Unit Depth29 in

Unit Height36-1/4 in

Unit Width29 in

Efficiency13 SEER

Family Description3-5 Ton Split System Air Conditioner 3PH 208/230V 60Hz

Max. Voltage253 V

Min. Circuit17.6 A

Min. Voltage197 V

Model Efficiency13 SEER

Power Frequency60 Hz

Power Phase3 Ph

Power Voltage208/230 V

FamilyDX13SA_3

Prop65 Label RequiredTRUE

RefrigerantR-410A

Tonnage4 tons

Unit TypeOutdoor

Liquid Valve Outside Diameter3/8 in

Suction Valve Outside Diameter7/8 in

Unit Weight190 lb
